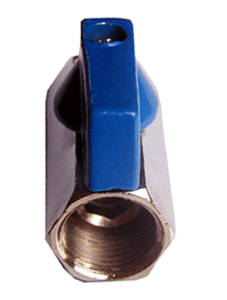

Miniature Chrome-Plated Brass Ball Valves

T400 & T400FM Valve Specifications
Reduced Port

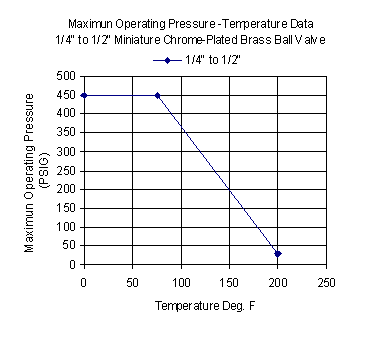

Maximum Operating Pressure:
1/4" to 1/2" -- 450PSIG @ 75°F WOG
Temperature Range: 0 to 200°F
End Connections: NPT Threaded (Female)
Stem is blow-out proof
Chrome-plated brass body, brass stem, chrome-plated ball, seats and seals are Teflon, handle is made of die-cast metal.

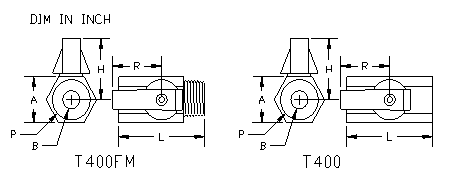

T400 & T400FM Stainless Steel Ball Valve Dimensions
Part No. Part No. A B (Bore) H L P (Port) R
T400 1/4 T400FM 1/4 0.80 0.31 1.00 1.58 1/4" NPT 0.93
T400 3/8 T400FM 3/8 0.80 0.31 1.00 1.58 3/8" NPT 0.93
T400 1/2 T400FM 1/2 0.96 0.39 1.10 1.78 1/2" NPT 0.93
