Stainless Steel Compression Fittings - Straight Compression Fitting Specifications

Specifications		Pressure
Operating Temperature	-425 to 600°F	Tube (OD)		Maximum Pressure (PSI @ 72°F)*
Operating Temperature	-425 to 600°F	1/16"		10,000
Material of Construction	316 Stainless Steel	1/8"	2mm	8,800
Material of Construction	316 Stainless Steel	3/16"	4mm	5,500
Compatible with	Swagelok®, Parker A-Lok, Let-Lock, Yor-Lock	1/4"	6mm	4,200
Service	Air, Water, Steam, Oil, Gasoline, Natural Gas, most solvents and acids that are compatible with 316SS	5/16"	8mm	3,300
Service		3/8"	10mm	2,800
		1/2"	12mm	2,500
		5/8"	16mm	2,300
		3/4"	18mm	2,100
		1"	20mm	1,900
		*Maximum pressures are based on Type 304 and 316 annealed stainless steel welded tubing made to ASTM A213, A249, or A269 standards.

Female Connector - FCC

Tube Size (ФD)	Thread Size	Part No.	A	B	C	D	E	F	G	H
1/8"	N1/8	FCC 1/8 N1/8	28.7	22.1	12.7	12	14	2	3.18	10
1/8"	N1/4	FCC 1/8 N1/4	33.5	27.0	12.7	15	17	2	3.18	10
1/4"	N1/8	FCC 1/4 N1/8	31.2	24.0	15.3	15	14	5	6.35	14
1/4"	N1/4	FCC 1/4 N1/4	35.8	28.4	15.3	15	17	5	6.35	14
1/4"	N3/8	FCC 1/4 N3/8	37.6	30.2	15.3	15	22	5	6.35	14
1/4"	N1/2	FCC 1/4 N1/2	42.4	35.1	15.3	15	27	5	9.53	14
3/8"	N1/8	FCC 3/8 N1/8	32.8	25.4	16.8	12	17	5	9.53	19
3/8"	N1/4	FCC 3/8 N1/4	37.6	30.2	16.8	15	17	6	9.53	19
3/8"	N3/8	FCC 3/8 N3/8	39.1	31.8	16.8	15	22	8	9.53	19
3/8"	N1/2	FCC 3/8 N1/2	43.9	36.6	16.8	20	27	8	9.53	19
3/8"	N3/4	FCC 3/8 N3/4	47.8	40.4	16.8	21	32	8	9.53	19
1/2"	N1/8	FCC 1/2 N1/8	37.3	27.2	22.8	12	22	5	12.7	22
1/2"	N1/4	FCC 1/2 N1/4	40.4	30.2	22.8	15	22	6	12.7	22
1/2"	N3/8	FCC 1/2 N3/8	42.0	31.8	22.8	15	22	8	12.7	22
1/2"	N1/2	FCC 1/2 N1/2	46.7	36.6	22.8	20	27	10	12.7	22
1/2"	N1/4	FCC 1/2 N3/4	48.3	38.2	22.8	21	32	10	12.7	22
1/2"	N1	FCC 1/2 N1	51.3	41.2	22.8	24	40	10	12.7	22
5/8"	N3/8	FCC 5/8 N3/8	42.1	32.0	24.4	15	27	9	15.9	27
5/8"	N1/2	FCC 5/8 N1/2	46.9	36.8	24.4	20	27	11	15.9	27
5/8"	N3/4	FCC 5/8 N3/4	48.5	38.4	24.4	21	32	12	15.9	27
3/4"	N1/2	FCC 3/4 N1/2	46.7	36.6	24.4	20	27	15	19.1	30
3/4"	N3/4	FCC 3/4 N3/4	48.3	38.1	24.4	21	32	15	19.1	30
1"	N3/4	FCC 1 N3/4	53.3	41.0	31.3	21	35	21	25.4	38
1"	N1	FCC 1 N1	62.2	50.0	31.3	24	40	21	25.4	38

4mm	R1/8	FCC 4 R1/8	29.7	23.1	13.7	12	14	3	4	12
6mm	R1/8	FCC 6 R1/8	31.3	23.9	15.3	12	14	5	6	14
6mm	R1/4	FCC 6 R1/4	35.8	28.4	15.3	15	17	5	6	14
6mm	R3/8	FCC 6 R3/8	37.6	30.2	15.3	15	22	5	6	14
6mm	R1/2	FCC 6 R1/2	42.5	35.1	15.3	20	27	5	6	14
8mm	R1/8	FCC 8 R1/8	32.1	24.6	16.2	12	14	5	8	17
8mm	R1/4	FCC 8 R1/4	37.0	29.5	16.2	15	17	6	8	17
8mm	R3/8	FCC 8 R3/8	38.5	31.0	16.2	15	22	6	8	17
8mm	R1/2	FCC 8 R1/2	43.3	35.8	16.2	20	27	6	8	17
10mm	R1/8	FCC 10 R1/8	34.8	27.2	17.2	12	19	5	10	19
10mm	R1/4	FCC 10 R1/4	37.8	30.2	17.2	15	19	6	10	19
10mm	R3/8	FCC 10 R3/8	39.4	31.8	17.2	15	22	8	10	19
10mm	R1/2	FCC 10 R1/2	44.2	36.8	17.2	20	27	8	10	19
12mm	R1/8	FCC 12 R1/8	37.3	27.2	22.8	12	22	5	12	22
12mm	R1/4	FCC 12 R1/4	40.3	30.2	22.8	15	22	6	12	22
12mm	R3/8	FCC 12 R3/8	41.9	31.2	22.8	15	22	8	12	22
12mm	R1/2	FCC 12 R1/2	46.7	36.6	22.8	20	27	10	12	22
12mm	R3/4	FCC 12 R3/4	48.3	38.2	22.8	21	32	10	12	22
12mm	R1	FCC 12 R1	51.3	41.2	22.8	24	40	10	12	22
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

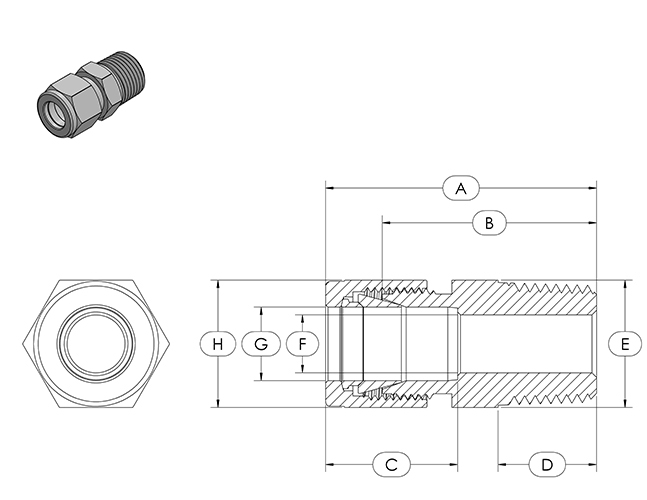

Male Connector - MCC

Tube Size (ФD)	Thread Size	Part No.	A	B	C	D	E	F	G	H
1/16"	N1/8	MCC 1/16 N1/8	26.5	22.7	8.6	10	10	1	1.59	10
1/16"	N1/4	MCC 1/16 N1/8	29.8	26.0	8.6	13	14	1	1.59	10
1/8"	N1/8	MCC 1/8 N1/8	30.8	24.4	12.7	10	12	3	3.18	10
1/8"	N1/4	MCC 1/8 N1/4	34.4	27.8	12.7	13	14	3	3.18	10
1/8"	N3/8	MCC 1/8 N3/8	35.6	29.0	12.7	14	17	3	3.18	10
1/8"	N1/2	MCC 1/8 N1/2	40.1	33.5	12.7	17	22	3	3.18	10
3/16"	N1/8	MCC 3/16 N1/8	31.5	24.9	13.7	10	12	3	4.76	12
3/16"	N1/8	MCC 3/16 N1/4	35.1	28.5	13.7	13	14	3	4.76	12
1/4"	N1/8	MCC 1/4 N1/8	33.1	27.7	15.3	10	14	5	6.35	14
1/4"	N1/4	MCC 1/4 N1/4	36.6	29.3	15.3	13	14	5	6.35	14
1/4"	N3/8	MCC 1/4 N3/8	38.2	30.8	15.3	14	17	5	6.35	14
1/4"	N1/2	MCC 1/4 N1/2	42.6	35.1	15.3	17	22	5	6.35	14
1/4"	N3/4	MCC 1/4 N3/4	46.1	38.8	15.3	19	27	5	6.35	14
3/8"	N1/8	MCC 3/8 N1/8	35.6	28.2	16.8	10	17	5	9.53	17
3/8"	N1/4	MCC 3/8 N1/4	38.8	31.3	16.8	13	17	6	9.53	17
3/8"	N3/8	MCC 3/8 N3/8	39.8	32.3	16.8	14	17	8	9.53	17
3/8"	N1/2	MCC 3/8 N1/2	44.1	36.8	16.8	17	22	8	9.53	17
3/8"	N3/4	MCC 3/8 N3/4	47.7	40.3	16.8	19	27	8	9.53	17
1/2"	N1/8	MCC 1/2 N1/8	39.2	29.0	22.8	10	22	5	12.7	22
1/2"	N1/4	MCC 1/2 N1/4	42.2	32.1	22.8	13	22	6	12.7	22
1/2"	N3/8	MCC 1/2 N3/8	43.2	33.1	22.8	14	22	8	12.7	22
1/2"	N1/2	MCC 1/2 N1/2	46.9	36.8	22.8	17	22	10	12.7	22
1/2"	N3/4	MCC 1/2 N3/4	50.4	40.3	22.8	19	27	10	12.7	22
1/2"	N1	MCC 1/2 N1	55.2	45.0	22.8	22	35	10	12.7	22
5/8"	N3/8	MCC 5/8 N3/8	43.9	33.8	24.4	14	24	8	15.9	27
5/8"	N1/2	MCC 5/8 N1/2	46.9	36.8	24.4	17	24	10	15.9	27
5/8"	N3/4	MCC 5/8 N3/4	50.4	40.3	24.4	19	27	12	15.9	27
3/4"	N1/2	MCC 3/4 N1/2	48.4	38.2	24.4	17	27	10	19.1	30
3/4"	N3/4	MCC 3/4 N3/4	50.4	40.3	24.4	19	27	15	19.1	30
3/4"	N1	MCC 3/4 N1	55.2	45.0	24.4	22	35	15	19.1	30
1"	N1/2	MCC 1 N1/2	55.4	43.1	31.3	17	35	10	25.4	38
1"	N3/4	MCC 1 N3/4	57.4	45.1	31.3	19	35	16.5	25.4	38
1"	N1	MCC 1 N1	60.4	48.1	31.3	22	35	20	25.4	38

4mm	R1/8	MCC 4 R1/8	31.5	24.9	13.7	10	10	3	4	12
4mm	R1/4	MCC 4 R1/4	35.1	29.5	13.7	13	14	3	4	12
4mm	R3/8	MCC 4 R3/8	37.1	30.5	13.7	14	17	3	4	12
4mm	R1/2	MCC 4 R1/2	41.1	34.5	13.7	17	22	3	4	12
6mm	R1/8	MCC 6 R1/8	33.1	25.7	15.3	10	14	5	6	14
6mm	R1/4	MCC 6 R1/4	36.7	29.3	15.3	13	14	5	6	14
6mm	R3/8	MCC 6 R3/8	38.2	30.8	15.3	14	17	5	6	14
6mm	R1/2	MCC 6 R1/2	42.7	35.3	15.3	17	22	5	6	14
8mm	R1/8	MCC 8 R1/8	34.5	27.0	16.2	10	19	5	8	17
8mm	R1/4	MCC 8 R1/4	37.5	30.0	16.2	13	19	6	8	17
8mm	R3/8	MCC 8 R3/8	39.1	31.6	16.2	14	19	6	8	17
8mm	R1/2	MCC 8 R1/2	43.6	36.1	16.2	17	22	6	8	17
10mm	R1/8	MCC 10 R1/8	36.6	29.0	17.2	10	27	5	10	19
10mm	R1/4	MCC 10 R1/4	39.7	32.1	17.2	13	22	6	10	19
10mm	R3/8	MCC 10 R3/8	40.7	33.1	17.2	14	22	8	10	19
10mm	R1/2	MCC 10 R1/2	44.5	36.9	17.2	17	22	8	10	19
10mm	R3/4	MCC 10 R3/4	48.0	40.4	17.2	19	22	8	10	19
12mm	R1/8	MCC 12 R1/8	39.1	29.0	22.8	10	27	5	12	22
12mm	R1/4	MCC 12 R1/4	42.2	32.1	22.8	13	34	6	12	22
12mm	R3/8	MCC 12 R3/8	43.2	33.1	22.8	14	24	8	12	22
12mm	R1/2	MCC 12 R1/2	47.0	36.9	22.8	17	24	10	12	22
12mm	R3/4	MCC 12 R3/4	50.0	40.4	22.8	19	27	10	12	22
12mm	R1	MCC 12 R1	55.3	45.2	22.8	22	24	10	12	27
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Bulkhead Union - BUC

Tube Size (ФD)	Part No.	Panel Hole Size	Max Panel Thickness	A	B	C	D	E	F	G	H
1/4"	BUC 1/4	11.5	10.2	57.7	42.9	15.2	26.0	17	5	6.35	14
5/16"	BUC 5/16	13.1	11.2	61.0	46.0	16.2	28.6	19	6	7.94	17
3/8"	BUC 3/8	16.3	11.2	62.2	46.0	16.8	29.0	19	7	9.53	17
1/2"	BUC 1/2	19.5	12.7	71.1	50.8	22.8	31.0	24	10	12.7	22
3/4"	BUC 3/4	26.0	16.8	79.0	58.7	24.4	38.0	30	15	19.1	30
1"	BUC 1	33.2	26.0	95.8	71.4	31.2	50.0	40	21	25.4	38

6mm	BUC 6	11.5	10.2	57.7	42.9	15.3	26.2	17	5	6	14
8mm	BUC 8	13.1	11.2	61.0	46.0	16.2	28.6	19	6	8	17
10mm	BUC 10	16.3	11.2	63.7	48.5	17.2	29.4	19	8	10	19
12mm	BUC 12	19.5	12.7	71.0	50.8	22.8	31.8	24	10	12	22
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Straight Union - SUC

Tube Size, ФD	Part No.	A	B	C	D	E	F	G
1/16"	SUC 1/16	25.1	17.5	8.6	10	10	1	1.59
1/8"	SUC 1/8	35.6	22.4	12.7	10	10	2	3.18
3/16"	SUC 3/16	37.3	24.1	13.7	12	12	3	4.76
1/4"	SUC 1/4	40.9	26.2	15.2	12	14	4	6.35
5/16"	SUC 5/16	43.2	28.2	16.2	14	17	6	7.94
3/8"	SUC 3/8	45.0	30.2	16.8	17	17	7	9.53
1/2"	SUC 1/2	51.3	31.0	22.9	22	22	10	12.7
5/8"	SUC 5/8	52.1	31.0	24.4	24	27	12	15.9
3/4"	SUC 3/4	53.6	33.3	24.4	27	30	15	19.1
1"	SUC 1	64.8	40.4	31.2	35	38	21	25.4

4mm	SUC 4	37.3	24.1	13.7	12	12	3	4
6mm	SUC 6	41.0	26.2	15.3	12	14	4	6
8mm	SUC 8	43.2	28.2	16.2	14	17	6	8
10mm	SUC 10	46.2	31.0	17.2	19	19	8	10
12mm	SUC 12	51.2	31.0	22.8	22	22	10	12
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

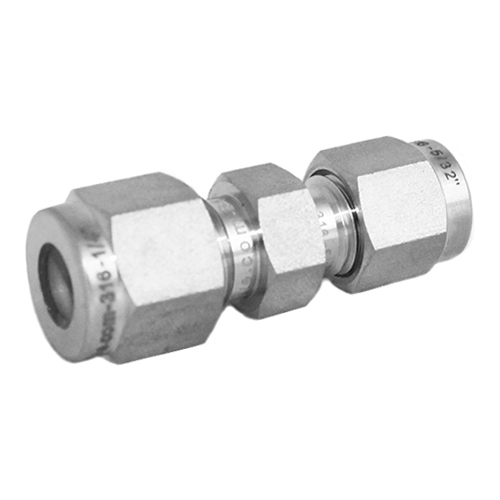

Reducing Union - RUC

Tube Size, ФD1	Tube Size, ФD2	Part No.	A	B	C1	C2	D	E1	E2	F	G1	G2
1/8"	1/16"	RUC 1/8-1/16	31.0	20.6	12.7	8.6	12	10	12	1	3.18	1.59
3/16"	1/8"	RUC 3/16-1/8	36.6	23.4	13.7	12.7	12	12	12	3	4.76	3.18
1/4"	1/8"	RUC 1/4-1/8	38.6	24.6	15.2	12.7	14	14	14	3	6.35	3.18
5/16"	1/4"	RUC 5/16-1/4	42.2	27.4	16.2	15.2	14	17	14	5	7.94	6.35
3/8"	1/4"	RUC 3/8-1/4	43.2	28.4	16.8	15.2	17	17	14	5	9.53	6.35
1/2"	1/4"	RUC 1/2-1/4	47.0	29.5	22.8	15.2	22	22	17	5	12.7	6.35
1/2"	3/8"	RUC 1/2-3/8	48.5	31.0	22.8	16.8	22	22	17	7	12.7	9.53
3/4"	1/2"	RUC 3/4-1/2	53.6	33.3	24.4	22.8	27	30	19	10	19.1	12.7
1"	3/4"	RUC 1-3/4	62.7	40.4	31.2	24.4	35	38	22	15	25.4	19.1

6mm	4mm	RUC 6-4	39.4	24.4	15.3	13.7	14	14	12	3	6	4
8mm	6mm	RUC 8-6	42.3	27.4	16.2	15.3	14	17	14	5	8	6
10mm	6mm	RUC 10-6	44.5	29.5	17.2	15.3	19	19	14	5	10	6
10mm	8mm	RUC 10-8	45.1	30.0	17.2	16.2	19	19	17	6	10	8
12mm	6mm	RUC 12-6	47.3	29.5	22.8	15.3	22	22	14	5	12	6
12mm	8mm	RUC 12-8	47.8	30.2	22.8	16.2	22	22	17	6	12	8
12mm	10mm	RUC 12-10	48.7	31.0	22.8	17.2	22	22	19	8	12	10
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Tube Stem Reducer - TRC

Tube Size, ФD	Pipe Size	Part No.	A	B	C	D	E	F	G	H
1/16"	1/8"	TRC 1/16X1/8	29.2	25.4	8.6	10	3.18	1	1.59	10
1/16"	1/4	TRC 1/16X1/4	31.5	27.7	8.6	10	6.35	1	1.59	10
1/8"	1/16	TRC 1/8X1/16	29.0	20.3	12.7	10	1.59	0.7	3.18	12
1/8"	1/8"	TRC 1/8X1/8	33.5	26.9	12.7	10	3.18	2	3.18	12
1/8"	1/4"	TRC 1/8X1/4	36.0	29.5	12.7	10	6.35	3	3.18	12
1/8"	3/8"	TRC 1/8X3/8	37.6	31.0	12.7	10	9.53	3	3.18	12
1/8"	1/2"	TRC 1/8X1/2	44.2	37.6	12.7	14	12.7	3	3.18	12
1/4"	1/8"	TRC 1/4X1/8	36.8	29.5	15.2	12	3.18	2	6.35	14
1/4"	1/4"	TRC 1/4X1/4	38.1	31.8	15.2	12	6.35	4	6.35	14
1/4"	3/8"	TRC 1/4X3/8	40.6	33.3	15.2	12	9.53	5	6.35	14
1/4"	1/2"	TRC 1/4X1/2	46.2	38.9	15.2	14	12.7	5	6.35	14
1/4"	5/8"	TRC 1/4X5/8	48.0	40.6	15.2	17	15.9	5	6.35	14
1/4"	3/4"	TRC 1/4X3/4	47.0	40.4	15.2	19	19.1	5	6.35	14
3/8"	1/4"	TRC 3/8X1/4	41.4	34.0	16.8	17	6.35	4	6.35	17
3/8"	3/8"	TRC 3/8X3/8	43.2	35.8	16.8	17	9.53	7	9.53	17
3/8"	1/2"	TRC 3/8X1/2	48.5	41.1	16.8	17	12.7	8	9.53	17
3/8"	5/8"	TRC 3/8X5/8	50.3	42.9	16.8	17	15.9	8	9.53	17
3/8"	3/4"	TRC 3/8X3/4	50.3	42.9	16.8	22	19.1	8	9.53	17
1/2"	1/4"	TRC 1/2X1/4	45.0	34.8	22.8	22	6.35	4	12.7	22
1/2"	3/8"	TRC 1/2X3/8	46.7	36.6	22.8	22	9.53	7	12.7	22
1/2"	1/2"	TRC 1/2X1/2	52.3	42.2	22.8	22	12.7	10	12.7	22
1/2"	5/8"	TRC 1/2X5/8	50.8	43.7	22.8	22	15.9	10	12.7	22
1/2"	3/4"	TRC 1/2X3/4	53.8	43.7	22.8	22	19.1	10	12.7	22
1/2"	1"	TRC 1/2X1	60.2	50.0	22.8	27	25.4	10	12.7	22
5/8"	3/4"	TRC 5/8X3/4	54.6	44.5	24.4	24	19.1	12	15.9	27
5/8"	1"	TRC 5/8X1	61.0	50.8	24.4	27	25.4	12	15.9	27
3/4"	1/2"	TRC 3/4X1/2	54.6	44.5	24.4	27	12.7	10	19.1	30
3/4"	1"	TRC 3/4X1	62.5	52.3	24.4	27	25.4	15	19.1	30

4mm	6mm	TRC 4X6	37.1	30.5	13.7	10	6	3	4	12
6mm	8mm	TRC 6X8	39.9	32.5	15.3	12	8	5	6	14
6mm	10mm	TRC 6X10	40.7	33.3	15.3	12	10	5	6	14
6mm	12mm	TRC 6X12	46.3	38.9	15.3	14	12	5	6	14
8mm	6mm	TRC 8X6	40.3	32.8	16.2	14	6	5	8	17
8mm	10mm	TRC 8X10	42.0	34.5	16.2	14	10	6	8	17
8mm	12mm	TRC 8X12	47.6	40.1	16.2	14	12	6	8	17
10mm	6mm	TRC 10X6	42.4	34.8	17.2	17	6	5	10	19
10mm	8mm	TRC 10X8	43.4	35.8	17.2	17	8	6	10	19
10mm	12mm	TRC 10X12	49.8	42.2	17.2	17	12	8	10	19
12mm	6mm	TRC 12X6	44.9	34.8	22.8	22	6	5	12	22
12mm	8mm	TRC 12X8	45.9	35.8	22.8	22	8	6	12	22
12mm	10mm	TRC 12X10	46.7	36.6	22.8	22	10	8	12	22
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Butt Weld Pipe Connect - BWC

Tube Size, ФD	Pipe Size	Part No.	A	B	C	D	E	F	G	H	I
1/8"	1/8"	BWC 1/8X1/8	30.4	23.8	12.7	10.3	12	3	3.18	12	10
3/16"	1/8"	BWC 3/16X1/8	31.2	23.8	13.7	10.3	12	3	4.76	12	10
1/4"	1/8"	BWC 1/4X1/8	32.8	25.4	15.2	10.3	12	5	6.35	14	10
1/4"	1/4"	BWC 1/4X1/4	37.8	30.5	15.2	13.7	14	5	6.35	14	13
3/8"	1/4"	BWC 3/8X1/4	38.6	32.5	16.8	13.7	17	8	9.53	17	13
3/8"	3/8"	BWC 3/8X3/8	39.8	32.5	16.8	17.1	22	8	9.53	17	14
3/8"	1/2"	BWC 3/8X1/2	46.2	38.8	16.8	21.3	22	8	9.53	17	17
3/8"	3/4"	BWC 3/8X3/4	47.8	40.4	16.8	26.7	27	8	9.53	17	19
1/2"	3/8"	BWC 1/2X3/8	45.2	33.3	22.8	17.1	22	10	12.7	22	14
1/2"	1/2"	BWC 1/2X1/2	49.0	38.8	22.8	21.3	22	10	12.7	22	17
1/2"	3/4"	BWC 1/2X3/4	50.5	40.4	22.8	26.7	27	10	12.7	22	19
5/8"	1/2"	BWC 5/8X1/2	49.0	38.8	24.4	21.3	27	12	15.9	27	17
3/4"	3/4"	BWC 3/4X3/4	50.5	40.4	24.4	26.7	27	15	19.1	30	19
1"	1"	BWC 1X1	62.2	50.0	31.2	33.4	35	21	25.4	38	22

4mm	1/8"	BWC 4X1/8	31.2	24.6	13.7	11.3	12	3	4	12	10
6mm	1/8"	BWC 6X1/8	32.8	25.4	15.3	11.3	12	5	6	14	10
6mm	1/4"	BWC 6X1/4	37.9	30.5	15.3	13.7	14	5	6	14	13
8mm	1/8"	BWC 8X1/8	34.2	26.7	16.2	11.3	14	6	8	17	10
8mm	1/4"	BWC 8X1/4	38.7	31.2	16.2	13.7	14	6	8	17	13
8mm	1/2"	BWC 8X1/2	46.5	38.1	17.0	21.3	22	8	8	17	17
10mm	1/4"	BWC 10X1/4	40.9	33.3	17.2	13.7	17	8	10	19	13
10mm	3/8"	BWC 10X3/8	43.4	33.3	22.8	17.1	22	10	10	22	14
10mm	1/2"	BWC 10X1/2	46.5	38.9	17.2	21.3	22	8	10	19	17
12mm	1/4"	BWC 12X1/4	43.4	34.0	22.8	13.7	22	8	12	22	13
12mm	3/4"	BWC 12X3/4	43.4	38.9	22.8	17.1	22	10	12	22	14
12mm	1/2"	BWC 12X1/2	49.0	38.9	22.8	21.3	22	10	12	22	17
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Cap - CPC

Tube Size, ФD	Part No.	A	D	F	G	H
1/16"	CPC 1/16	15.0	8.6	10	10	11.2
1/8"	CPC 1/8	20.1	12.7	12	12	13.5
3/16"	CPC 3/16	21.3	13.7	12	12	14.7
1/4"	CPC 1/4	23.4	15.2	14	14	17.0
3/8"	CPC 3/8	25.7	16.3	17	17	18.3
1/2"	CPC 1/2	29.2	22.8	22	22	19.1
3/4"	CPC 3/4	31.5	24.4	27	30	21.3
1"	CPC 1	38.4	31.2	35	38	26.2

4mm	CPC 4	21.3	13.7	12	12	14.7
6mm	CPC 6	23.1	15.3	14	14	15.7
8mm	CPC 8	24.5	16.2	14	17	17.0
10mm	CPC 10	26.6	17.2	19	19	19.0
12mm	CPC 12	29.1	22.8	22	22	19.0
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Nut - NTC				Plug - PGC

Tube Size, ФD	Part No.	A	B	Tube Size, ФD	Part No.	A
1/16"	NTC 1/16	10	7.9	1/16"	PGC 1/16	10.0
1/8"	NTC 1/8	10	11.9	1/8"	PGC 1/8	10.0
3/16"	NTC 3/16	12	11.9	3/16"	PGC 3/16	12.0
1/4"	NTC 1/4	14	12.7	1/4"	PGC 1/4	14.0
3/8"	NTC 3/8	17	13.5	3/8"	PGC 3/8	17.0
1/2"	NTC 1/2	22	17.5	1/2"	PGC 1/2	22.0
5/8"	NTC 5/8	27	17.5
3/4"	NTC 3/4	30	17.5	3/4"	PGC 3/4	32.0
1"	NTC 1	38	20.6	1"	PGC 1	38.0

4mm	NTC 4	12	11.9	4mm	PGC 4	12
6mm	NTC 6	14	12.7	6mm	PGC 6	14
8mm	NTC 8	17	13.5	8mm	PGC 8	16
10mm	NTC 10	19	15.1	10mm	PGC 10	19
12mm	NTC 12	22	17.4	12mm	PGC 12	22
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.				Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Male Bulkhead Connector - BCC

Tube Size, ФD	Thread Size	Part No.	A	B	D	E	F	G	H	Panel Hole Size	Max. Panel Thickness
1/4"	N1/8	BCC 1/4 N1/8	50.9	10	15.3	5	17	14	42.4	11.5	10.2
1/4"	N1/4	BCC 1/4 N1/4	49.5	13	15.3	5	17	14	46.7	11.5	10.2
1/4"	N3/8	BCC 1/4 N3/8	54.9	14	15.3	5	17	14	40.9	11.5	10.2
1/4"	N1/2	BCC 1/4 N1/2	57.9	17	15.3	5	22	14	43.9	11.5	10.2
3/8"	N1/4	BCC 3/8 N1/4	57.4	13	16.8	8	19	17	42.0	16.3	11.2
3/8"	N3/8	BCC 3/8 N3/8	57.4	14	16.8	8	19	17	43.0	16.3	11.2
3/8"	N1/2	BCC 3/8 N1/2	63.8	17	16.8	8	19	17	47.0	16.3	11.2
1/2"	N1/4	BCC 1/2 N1/4	62.2	13	22.8	10	22	17	42.7	19.5	12.7
1/2"	N3/8	BCC 1/2 N3/8	63.2	14	22.8	10	22	19	43.7	19.5	12.7
1/2"	N1/2	BCC 1/2 N1/2	68.8	17	22.8	10	22	19	58.8	19.5	12.7

6mm	R1/8	BCC 6 R1/8	50.9	10	15.3	5	17	14	42.4	11.5	10.2
6mm	R1/4	BCC 6 R1/4	53.6	13	15.3	5	17	14	46.2	11.5	10.2
6mm	R3/8	BCC 6 R3/8	54.9	14	15.3	5	17	14	40.9	11.5	10.2
6mm	R1/2	BCC 6 R1/2	57.9	17	15.3	5	22	14	43.9	11.5	10.2
8mm	R1/8	BCC 8 R1/8	53.4	10	16.2	6	19	17	38.4	13.1	11.2
8mm	R1/4	BCC 8 R1/4	56.4	13	16.2	6	19	17	41.4	13.1	11.2
8mm	R3/8	BCC 8 R3/8	57.4	14	16.2	6	19	17	42.4	13.1	11.2
8mm	R1/2	BCC 8 R1/2	60.4	17	16.2	6	22	17	45.4	13.1	11.2
10mm	R1/4	BCC 10 R1/4	56.0	13	17.2	8	19	19	42.0	16.3	11.2
10mm	R3/8	BCC 10 R3/8	56.0	14	17.2	8	19	19	43.0	16.3	11.2
10mm	R1/2	BCC 10 R1/2	59.0	17	17.2	8	24	19	47.0	16.3	11.2
12mm	R1/4	BCC 12 R1/4	62.2	13	22.8	10	24	22	42.7	19.5	12.7
12mm	R3/8	BCC 12 R3/8	63.2	14	22.8	10	24	22	43.7	19.5	12.7
12mm	R1/2	BCC 12 R1/2	68.8	17	22.8	10	24	22	58.7	19.5	12.7
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Socket Weld Pipe Connector - SWC

Tube Size, ФD	Pipe Size	Part No.	A	B	D	E	F	G	H
1/8"	1/8"	SWC 1/8X1/8	28.7	12	12.7	2	14	12	22.1
1/8"	1/4"	SWC 1/8X1/4	33.5	15	12.7	2	17	12	27.0
1/4"	1/8"	SWC 1/4X1/8	31.2	12	15.2	5	17	14	24.0
1/4"	1/4"	SWC 1/4X1/4	35.8	15	15.2	5	17	14	28.4
1/4"	3/8"	SWC 1/4X3/8	37.6	15	15.2	5	22	14	30.2
1/4"	1/2"	SWC 1/4X1/2	42.4	20	15.2	5	27	14	35.1
3/8"	1/8"	SWC 3/8X1/8	32.8	12	16.8	5	17	19	25.4
3/8"	1/4"	SWC 3/8X1/4	37.6	15	16.8	6	17	19	30.2
3/8"	3/8"	SWC 3/8X3/8	39.1	15	16.8	8	22	19	31.8
3/8"	1/2"	SWC 3/8X1/2	43.9	20	16.8	8	27	19	36.6
3/8"	3/4"	SWC 3/8X3/4	47.8	1	16.8	8	32	19	40.4
1/2"	1/8"	SWC 1/2X1/8	37.3	12	22.8	5	22	22	27.2
1/2"	1/4"	SWC 1/2X1/4	40.4	15	22.8	6	22	22	30.2
1/2"	3/8"	SWC 1/2X3/8	40.2	15	22.8	8	22	22	31.8
1/2"	1/2"	SWC 1/2X1/2	46.7	20	22.8	10	27	22	36.6
1/2"	3/4"	SWC 1/2X3/4	48.3	21	22.8	10	32	22	38.2
1/2"	1"	SWC 1/2X1	51.3	24	22.8	10	40	22	41.2
5/8"	3/8"	SWC 5/8X3/8	42.1	15	24.4	8	27	27	32.0
5/8"	1/2"	SWC 5/8X1/2	46.9	20	24.4	11	27	27	36.8
5/8"	3/4"	SWC 5/8X3/4	48.5	21	24.4	12	32	27	38.4
3/4"	1/2"	SWC 3/4X1/2	46.7	20	24.4	15	27	30	36.6
3/4"	3/4"	SWC 3/4X3/4	48.3	21	24.4	15	32	30	38.1
1"	3/4"	SWC 1X3/4	53.3	21	31.3	21	35	38	41.1
1"	1"	SWC 1X1	62.2	24	31.3	21	40	38	50.0

4mm	1/8"	SWC 4X1/8	29.7	12	13.7	3	14	12	23.1
6mm	1/8"	SWC 6X1/8	31.3	12	15.3	5	14	14	23.9
6mm	1/4"	SWC 6X1/4	35.8	15	15.3	5	17	14	28.4
6mm	3/8"	SWC 6X3/8	37.6	15	15.3	5	22	14	30.2
6mm	1/2"	SWC 6X1/2	42.5	20	15.3	5	27	14	35.1
8mm	1/8"	SWC 8X1/8	32.1	12	16.2	5	14	17	24.6
8mm	1/4"	SWC 8X1/4	37.0	15	16.2	6	17	17	29.5
8mm	3/8"	SWC 8X3/8	38.5	15	16.2	6	22	17	31.0
8mm	1/2"	SWC 8X1/2	43.3	20	16.2	6	27	17	35.8
10mm	1/8"	SWC 10X1/8	34.8	12	17.2	5	19	19	27.2
10mm	1/4"	SWC 10X1/4	37.8	15	17.2	6	19	19	30.3
10mm	3/8"	SWC 10X3/8	39.4	15	17.2	8	22	19	36.8
10mm	1/2"	SWC 10X1/2	44.2	20	17.2	8	27	19	36.8
12mm	1/8"	SWC 12X1/8	37.3	15	22.8	5	22	22	27.2
12mm	1/4"	SWC 12X1/4	40.3	15	22.8	6	22	22	30.2
12mm	3/4"	SWC 12X3/4	41.9	15	22.8	8	22	22	31.8
12mm	1/2"	SWC 12X1/2	46.7	20	22.8	10	27	22	36.6
12mm	3/4	SWC 12X3/4	48.3	21	22.8	10	32	22	38.2
12mm	1"	SWC 12X1	51.3	24	22.8	10	40	22	41.2
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Home	Terms of Use	Terms of Sale	Career	Contact Us	Click Here to Order
Sizto Tech Corporation © 2001- . All rights reserved. Sizto Tech Corporation © 2001-2016. All rights reserved. Last modified: January 28, 2019. Information contained herein may be changed without prior notification.
