2V1 & 3V1 Series Solenoid
Valve Specifications and Dimensions
|
Part No.
|
Unit Price
|
Valve Picture
|
Port Size
(NPT)
|
Voltage Options
|
Electrical Entry
Options
|
Port No/ Position/Solenoid
|
Cv
Flow Rate
|
Response Time
|
Power Consumption
|
Pneumatic Symbo |
|
2V1
1/8
|
$18.81*
|
 |
1/8 NPT
|
1=12VDC
2=24VDC
2A=24VAC
3=110VAC
4=220VAC
(50/60Hz) |
G=Grommet
D= DIN (with LED indicator) |
2/2/1
Direct Acting
Normally closed
Two Way Valve
STACKING
|
0.23
22 SCFM @100 PSI
|
< 20 ms
|
3W for 60PSI
4.8W for 115 PSI
6.5W for 150 PSI |
 |
|
3V1
1/8
|
$18.81*
|
|
1/8 NPT
|
1=12VDC
2=24VDC
2A=24VAC
3=110VAC
4=220VAC
(50/60Hz) |
G=Grommet
D= DIN (with LED indicator) |
3/2/1
Direct Acting
Normally closed
Three Way Valve
STACKING
|
0.1
5 SCFM @100 PSI
|
< 20 ms
|
3W for 60PSI
4.8W for 115 PSI
6.5W for 150 PSI |
 |
|
2V1 & 3V1 Series Valve
Specifications |
|
Port & Mounting |
Body Ported, Stackable ( Stacking Hardware Included) |
|
Action & Motion |
Direct Acting, Normally Closed, Two Position, 2 to 3 Way |
|
Operating Pressure |
28" Hg to 115 PSI (Coil Wattage Dependent) |
|
Working
Medium |
40 micron filtered
air, inert gas & liquid |
|
Maximum Pressure |
150 PSI |
|
Operating Temperature |
(-5 to 80 Deg. C) with non-freezing medium |
|
Coil Insulation & Protection Class |
F Class, IP65 (CE Certification) |
|
Coil Duty
Cycle |
100% ED |
|
Electrical Connection |
D = DIN (with LED indicator, conduit terminal)
G = Grommet (12” Lead Wire) |
|
Body Material |
Anodized Aluminum |
|
Seal Material |
NBR (Buna N) |
|
Lubrication |
Not Required |
|
Electrical Coil Connections |
|
For DIN Coil |
To connect DIN coil:
1. Remove the Philip screw from the plastic housing and unplug it from
the DIN coil.
2. From the screw opening, push the terminal block out from the
plastic housing.
3. Note the 1, 2 and ground markings on
underside of DIN enclosure.
4. For DC DIN Coil, Connect 1 to Positive, 2 to Negative.
5. For AC DIN Coil, connect 1 to HOT wire, 2 to Neutral
wire, and if required connect ground to ground wire.
|
|
For Grommet Coil
|
To connect Grommet coil:
1. For DC Coil, connect one of the two wires to Positive, and
the other wire to
Negative.
2. For AC Coil, connect one of the two wires to HOT wire, and the
other wire to neutral
wire. |
|
Download CAD:
3V1-1/8 |
|

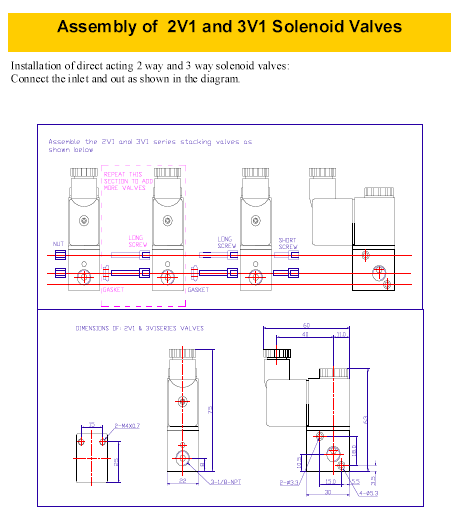

2V1 & 3V1 Series Solenoid
Valve Dimensions
(UNIT=MM)
Includes Stacking
Hardware
and seals
|
|
|
|
