                                      A Series Aluminum Body Filter-Regulator-Lubricators Specifications
                                                          Click on a picture to zoom to the product's information
Click Picture for Dimensions
Click Picture for
Flow Rates
Model

AC1000-5000-XX

AC1010-5010-XX

AW1000-5000-XX

AR1000-5000-XX

AF1000-5000-XX

 AL1000-5000-XX


 Numbering System: MODEL - BODY SIZE - PORT SIZE - OPTIONS
MODEL

BODY SIZE

PORT SIZE

 Standard Features

Options
AC

AW

AR

AF

AL

1000

00=10-32 (M5)
01=1/8 NPT
02=1/4 NPT
03=3/8 NPT
04=1/2 NPT
06=3/4 NPT
10=1 NPT

125 PSI Regulating Range

Polycarbonate Bowl

Semi-Auto Differential Drain

F25=25 Micron Filter (Sintered Brass)

Relieving Type



D=Automatic Drain (For 2000 TO 5000 Series Filter)

M=Aluminum Metal

P30=30PSI Regulating Range

P60=60 PSI Regulating Range

5 Micron Filter
2000
2500
3000
4000

5000

AC

1010
2010
3010
4010

5010

Specifications:
A Series FRL Interchangeable with SMC - NAC SERIES FRL
 These FRL components are of Modular design with joiner clamps and allow you to easily connect and disconnect FRL components for simple installation and maintenance.

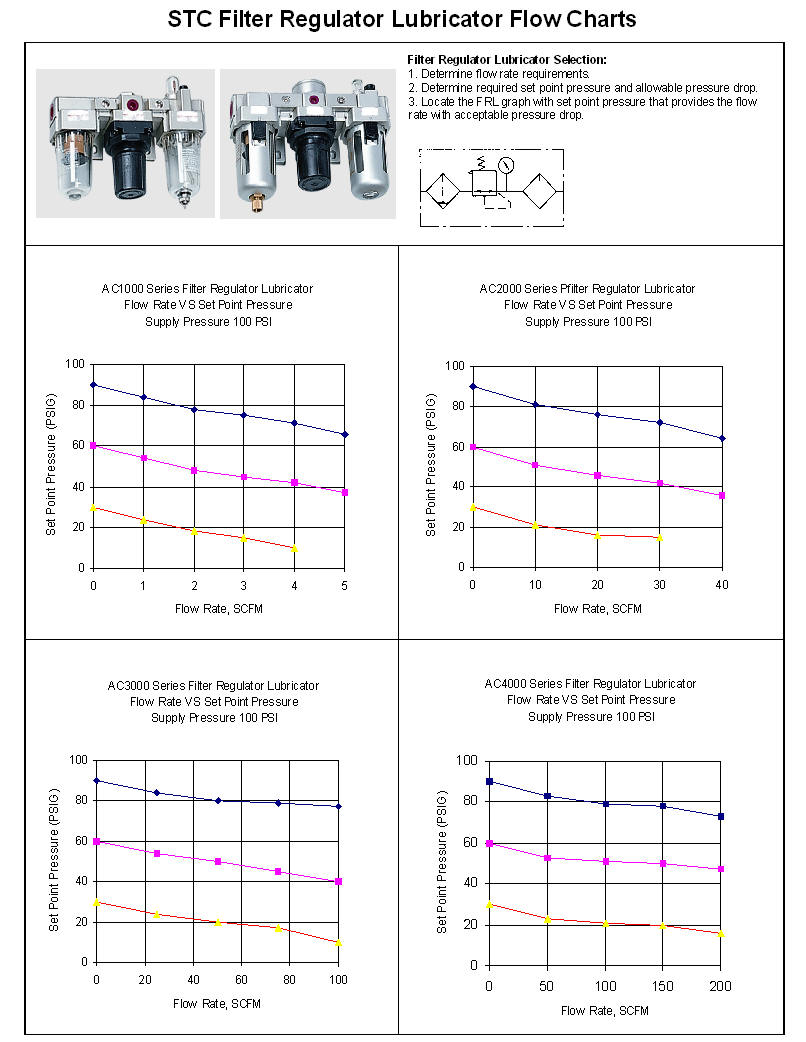

Regulator-Filter-Lubricator

AC1000-XX

AC2000-XX

AC3000-XX

AC4000-XX

AC4000-06

AC5000-XX

Flow Rate* SCFM (LPM)

3 (90)

18 (500)

70 (2000)

140 (4000)

160 (4500)

180 (5000)

Stacking Regulator-Filter-Lubricator

AC1010-XX

AC2010-XX

AC3010-XX

AC4010-XX

AC4010-06

AC5010-XX

Flow Rate* SCFM (LPM)

3 (90)

18 (500)

60 (1700)

105 (3000)

105 (3000)

140 (4000)

Stacking Regulator-Filter

AW1000-XX

AW2000-XX

AW3000-XX

AW4000-XX

AW4000-06

AW5000-XX

Flow Rate* SCFM (LPM)

3 (90)

19 (550)

70 (2000)

140 (4000)

160 (4500)

195 (5500)

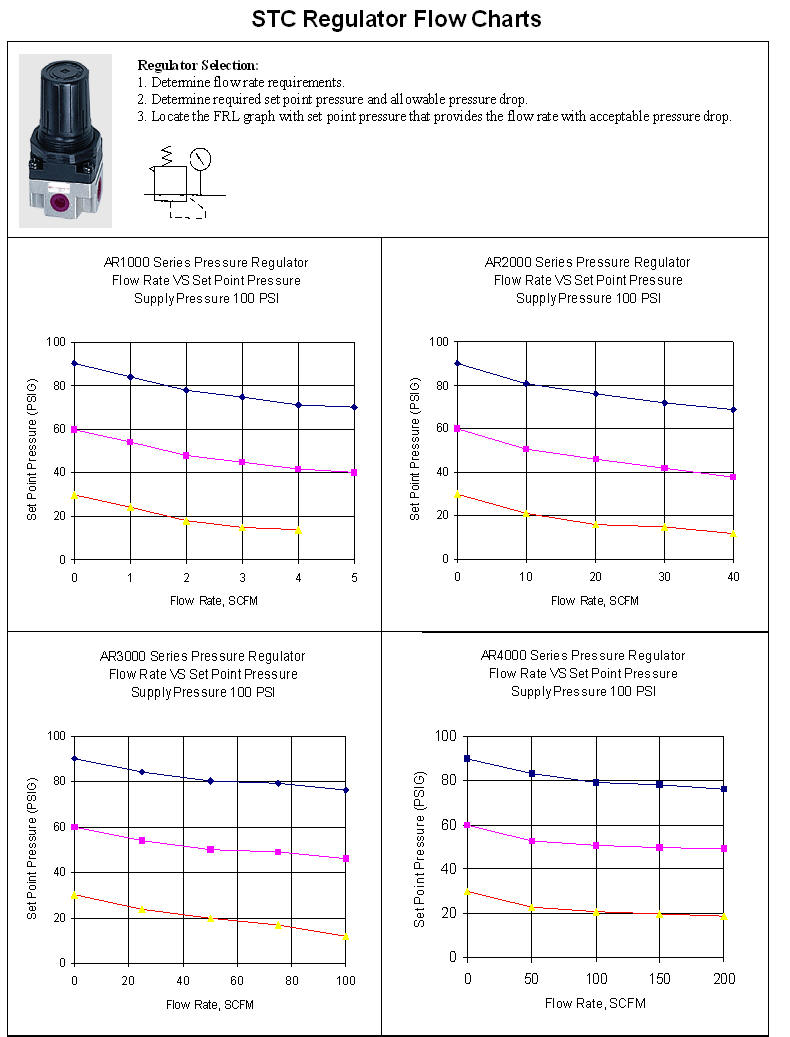

Regulator

AR1000-XX

AR2000-XX

AR3000-XX

AR4000-XX

AR4000-06

AR5000-XX

Flow Rate* SCFM (LPM)

4 (100)

19 (550)

88 (2500)

210 (6000)

210 (6000)

280 (8000)

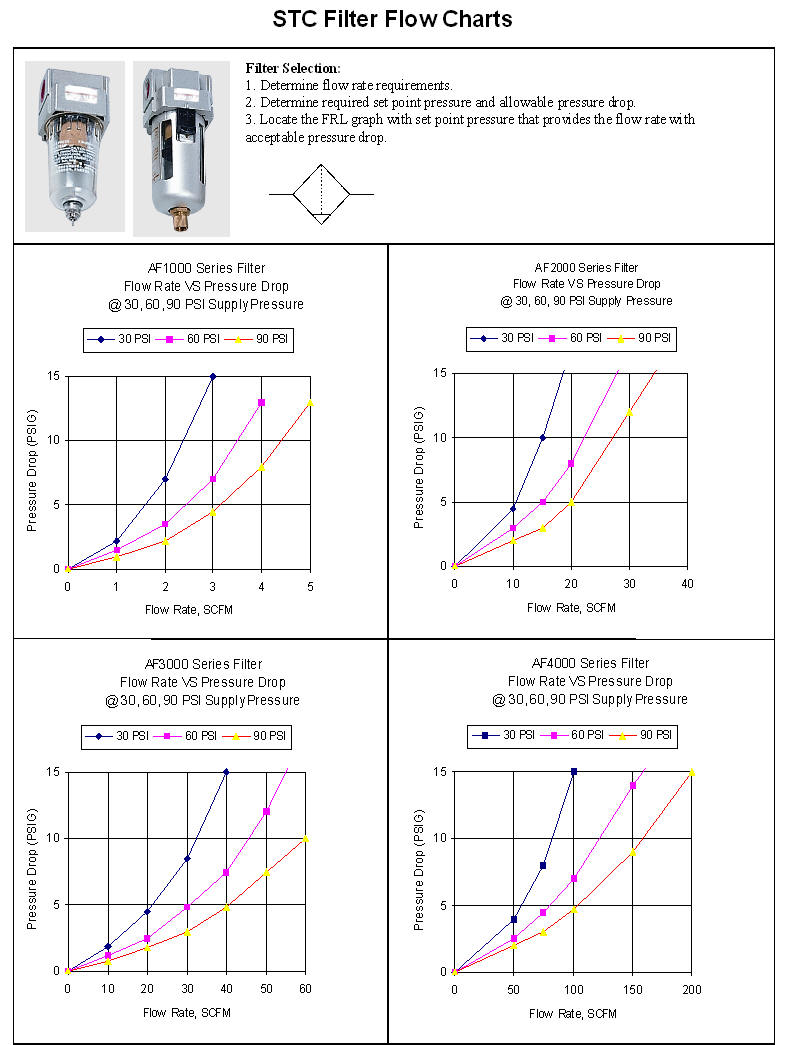

Filter

AF1000-XX

AF2000-XX

AF3000-XX

AF4000-XX

AF4000-06

AF5000-XX

Flow Rate* SCFM (LPM)

4 (110)

26 (750)

70 (2000)

140 (4000)

210 (6000)

245 (7000)

Lubricator

AL1000-XX

AL2000-XX

AL3000-XX

AL4000-XX

AL4000-06

AL5000-XX

Flow Rate* SCFM (LPM)

3 (90)

28 (800)

60 (1700)

180 (5000)

220 (6300)

245 (7000)

Port Size

10-32 (M5)

1/8 or 1/4 NPT

1/4 or 3/8 NPT

3/8 or 1/2 NPT

3/4 NPT

3/4 or 1 NPT

Port Size (Pressure Gauge)

1/16 RC (PT)

1/8 NPT

1/8 NPT

1/4 NPT

1/4 NPT

1/4 NPT

Regulating Range

7-100 PSI

7-125 PSI (0.5-8.5 kgf/cm2)

Max. Operating Pressure

150 PSI (9.9 kgf/cm2)

Operating Temperature

40-140°F (5-60°C)

Filtration

5 micron filter (standard);    25 Micron (Sintered Brass Filter)

Bowl Material

Polycarbonate (standard) or Aluminum Metal

Bowl Guard

N/A

Steel Bowl Guard

Body Material

Die-Casting Aluminum

Construction/Regulator

Relieving Type

Filter Drain

Semi-Auto Differential Drain

Semi-Auto Differential Drain (Standard) or Automatic Drain
*Measured with Supply Pressure @100 PSI and Set Point Pressure @75 PSI

Top of Page                          A Series Filter Regulator Lubricator Dimensions

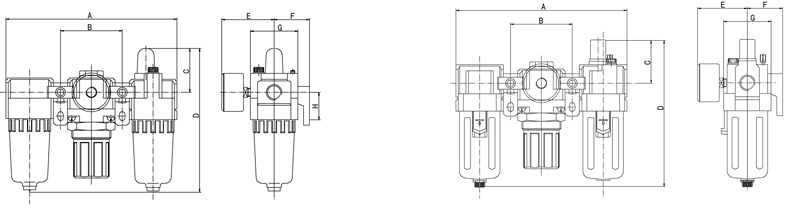

Model

Flow Rate
(lpm/scfm)

Port

Gauge Port

A
(mm/in)

B

(mm/in)

C

(mm/in)

D

(mm/in)

E

(mm/in)

F

(mm/in)

G

(mm/in)

H

(mm/in)

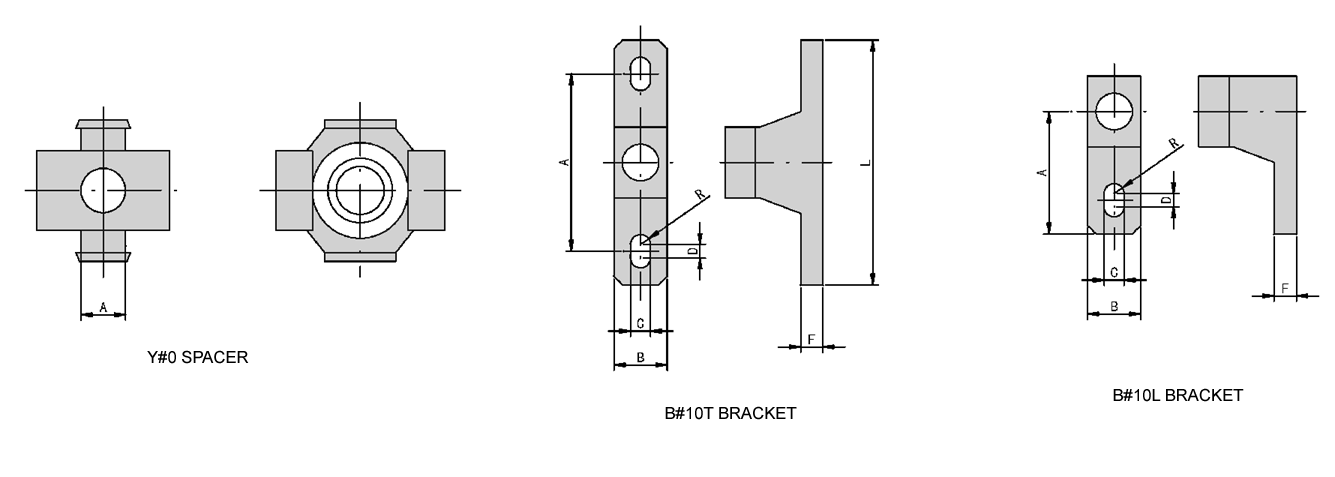

Bracket

Weight
(kg/lb)

Gauge

AC1000 –00

90

10-32 (M5)

1/16 Rc

91

33

25.5

84.5

26

25

25

20

Y10L

0.26

GE-1-160-00

3

3.58

1.30

1.00

3.33

1.02

0.98

0.98

0.79

0.57

AC2000 –01

500

1/8 NPT

1/8 NPT

140

50

38

125

56.8

30

40

24

Y20L

0.74

GE-1 1/2-160-01

AC2000 –02

18

1/4 NPT

5.51

1.97

1.50

4.92

2.24

1.18

1.57

0.94

1.63

AC3000 –02

2000

1/4 NPT

1/8 NPT

181

64

38

156.5

60.8

41

53

35

Y30L

1.18

AC3000 –03

70

3/8 NPT

7.13

2.52

1.50

6.16

2.39

1.61

2.09

1.38

2.60

AC4000 –03

4000

3/8 NPT

1/4 NPT

238

84

41

191.5

65.5

50

70

40

Y40L

2.14

GE-2-160-02

AC4000 –04

140

1/2 NPT

9.37

3.31

1.61

7.54

2.58

1.97

2.76

1.57

4.71

AC4000 -06

4500

3/4 NPT

1/4 NPT

253

89

41

193

69.5

50

70

40

Y50L

2.47

160

9.96

3.50

1.61

7.60

2.74

1.97

2.76

1.57

5.43

AC5000 –06

5000

3/4 NPT

1/4 NPT

300

105

48

271.5

75.5

69.8

90

50

Y60L

3.82

AC5000 –10

180

1 NPT

11.81

4.13

1.89

10.69

2.97

2.75

3.54

1.97

8.40


  Top of Page                             A Series Stacking Filter Regulator Lubricator Dimensions

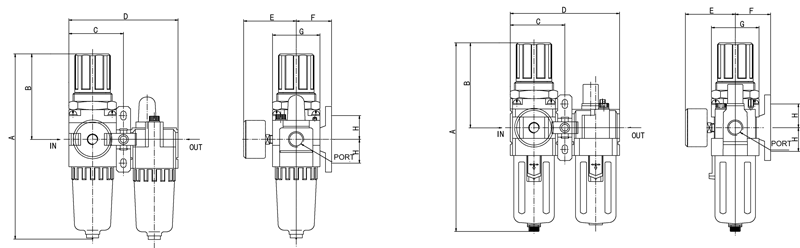

Model

Flow Rate
(lpm/scfm)

Port

Gauge Port

A
(mm/in)

B

(mm/in)

C

(mm/in)

D

(mm/in)

E

(mm/in)

F

(mm/in)

G

(mm/in)

H

(mm/in)

Bracket

Weight

(kg/lb)

Gauge

AC1010 –00

90

10-32 (M5)

1/16 Rc

109.5

50.5

29

58

26

25

25

20

Y10T

0.22

GE-1-160-00

3

4.31

1.99

1.14

2.28

1.02

0.98

0.98

0.79

0.48

AC2010 –01

500

1/8 NPT

1/8 NPT

164.5

78

45

90

56.8

30

40

24

Y20T

0.66

GE-1 1/2-160-01

AC2010 –02

18

1/4 NPT

6.48

3.07

1.77

3.54

2.24

1.18

1.57

0.94

1.45

AC3010 –02

1700

1/4 NPT

1/8 NPT

211

92.5

58.5

117

60.8

41

53

35

Y30T

0.98

AC3010 –03

60

3/8 NPT

8.31

3.64

2.30

4.61

2.39

1.61

2.09

1.38

2.16

AC4010 –03

3000

3/8 NPT

1/4 NPT

262

112

77

154

65.5

50

70

40

Y40T

1.93

GE-2-160-02

AC4010 –04

105

1/2 NPT

10.31

4.41

3.03

6.06

2.58

1.97

2.76

1.57

4.25

AC4010-06

3000

3/4 NPT

1/4 NPT

267

114

82

164

69.5

50

70

40

Y50T

1.99

105

10.51

4.49

3.23

6.46

2.74

1.97

2.76

1.57

4.38

AC5010 –06

4000

3/4 NPT

1/4 NPT

338

116

97.5

195

75.5

69.8

90

50

Y60T

3.2

AC5010 –10

140

1 NPT

13.31

4.57

3.84

7.68

2.97

2.75

3.54

1.97

7.04

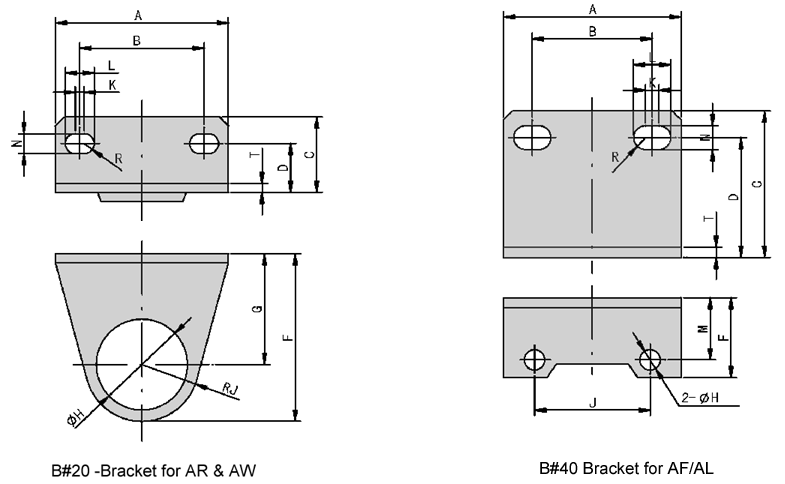

Top of Page                                               A Series Filter Dimensions

Model

Flow Rate
(lpm/scfm)

Port

A
(mm/in)

B

(mm/in)

C

(mm/in)

D

(mm/in)

Bracket

Weight

(kg/lb)

AF1000-00

110

10-32 (M5)

66

7

25

B140

0.07

4

2.60

0.28

0.98

0.00

0.15

AF2000-01

750

1/8 NPT

97.5

11

40

40

B240

0.19

AF2000-02

26

1/4 NPT

3.84

0.43

1.57

1.57

0.42

AF3000-02

2000

1/4 NPT

132.5

14

53

53

B340

0.29

AF3000-03

70

3/8 NPT

5.22

0.55

2.09

2.09

0.64

AF4000-03

4000

3/8 NPT

168.5

18

70

70

B440

0.55

AF4000-04

140

1/2 NPT

6.63

0.71

2.76

2.76

1.21

AF4000-06

6000

3/4 NPT

172.5

20

70

70

B540

0.58

210

6.79

0.79

2.76

2.76

1.28

AF5000-06

7000

3/4 NPT

247.5

24

90

90

B640

1.08

AF5000-10

245

1 NPT

9.74

0.94

3.54

3.54

2.38

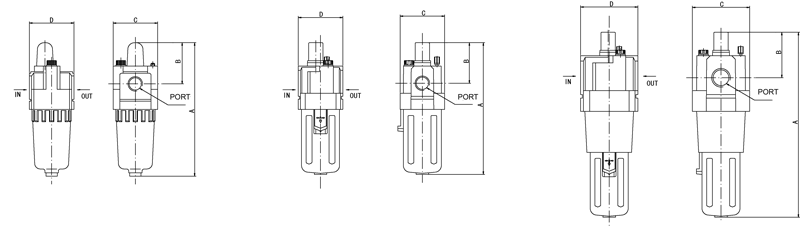

Top of Page                                          A Series Lubricator Dimensions

Model

Flow Rate
(lpm/scfm)

Port

A
(mm/in)

B

(mm/in)

C

(mm/in)

D

(mm/in)

Bracket

Weight

(kg/lb)

AL1000-00

95

10-32 (M5)

81.5

25.5

25

B140

0.07

3

3.21

1.00

0.98

0.15

AL2000-01

800

1/8 NPT

122

38

40

40

B240

0.22

AL2000-02

28

1/4 NPT

4.80

1.50

1.57

1.57

0.48

AL3000-02

1700

1/4 NPT

142

38

53

53

B340

0.3

AL3000-03

60

3/8 NPT

5.59

1.50

2.09

2.09

0.66

AL4000-03

5000

3/8 NPT

177

41

70

70

B440

0.56

AL4000-04

180

1/2 NPT

6.97

1.61

2.76

2.76

1.23

AL4000-06

6300

3/4 NPT

177

39

70

70

B540

0.58

220

6.97

1.54

2.76

2.76

1.28

AL5000-06

7000

3/4 NPT

254

45

90

90

B640

1.08

AL5000-10

245

1 NPT

10.00

1.77

3.54

3.54

2.38



Top of Page                                              A Series Regulator Dimensions

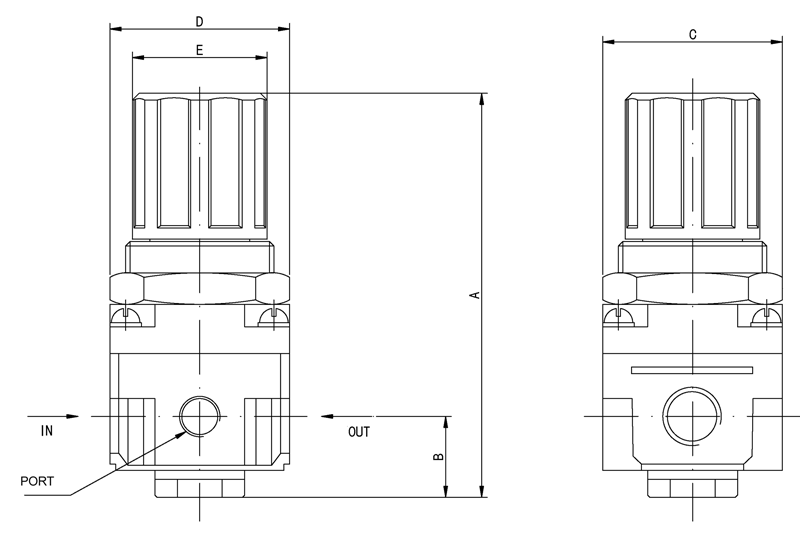

Model

Flow Rate
(lpm/scfm)

Port

Gauge Port

A
(mm/in)

B

(mm/in)

C

(mm/in)

D

(mm/in)

E

(mm/in)

Panel Hole Size
(mm/in)

Bracket

Weight

(kg/lb)

Gauge

AR1000-00

100/4

10-32 (M5)

1/16 Rc

61.5

11

25

25

20

20

B120

0.08

GE-1-160-00

2.42

0.43

0.98

0.98

0.79

0.79

0.18

AR2000-01

550/19

1/8 NPT

1/8 NPT

95

17

40

40

34

34

B220

0.27

GE-1 1/2-160-01

AR2000-02

1/4 NPT

3.74

0.67

1.57

1.57

1.34

1.34

0.59

AR2500-02

2000/70

1/4 NPT

1/8 NPT

102.5

25

48

48

34

34

0.27

AR2500-03

3/8 NPT

4.04

0.99

1.89

1.89

1.34

1.34

0.59

AR3000-02

2500/88

1/4 NPT

1/8 NPT

127.5

35

53

53

40

40

B320

0.41

AR3000-03

3/8 NPT

5.02

1.38

2.09

2.09

1.57

1.57

0.90

AR4000-03

6000/210

3/8 NPT

1/4 NPT

149.5

37.5

70

70

54

54

B420

0.84

GE-2-160-02

AR4000-04

1/2 NPT

5.89

1.48

2.76

2.76

2.13

2.13

1.85

AR4000-06

6000/210

3/4 NPT

1/4 NPT

154

40.5

70

75

54

54

0.84

6.06

1.59

2.76

2.95

2.13

2.13

1.85

AR5000-06

8000/280

3/4 NPT

1/4 NPT

168

48

90

90

54

54

1.19

AR5000-10

1 NPT

6.61

1.89

3.54

3.54

2.13

2.13

2.62

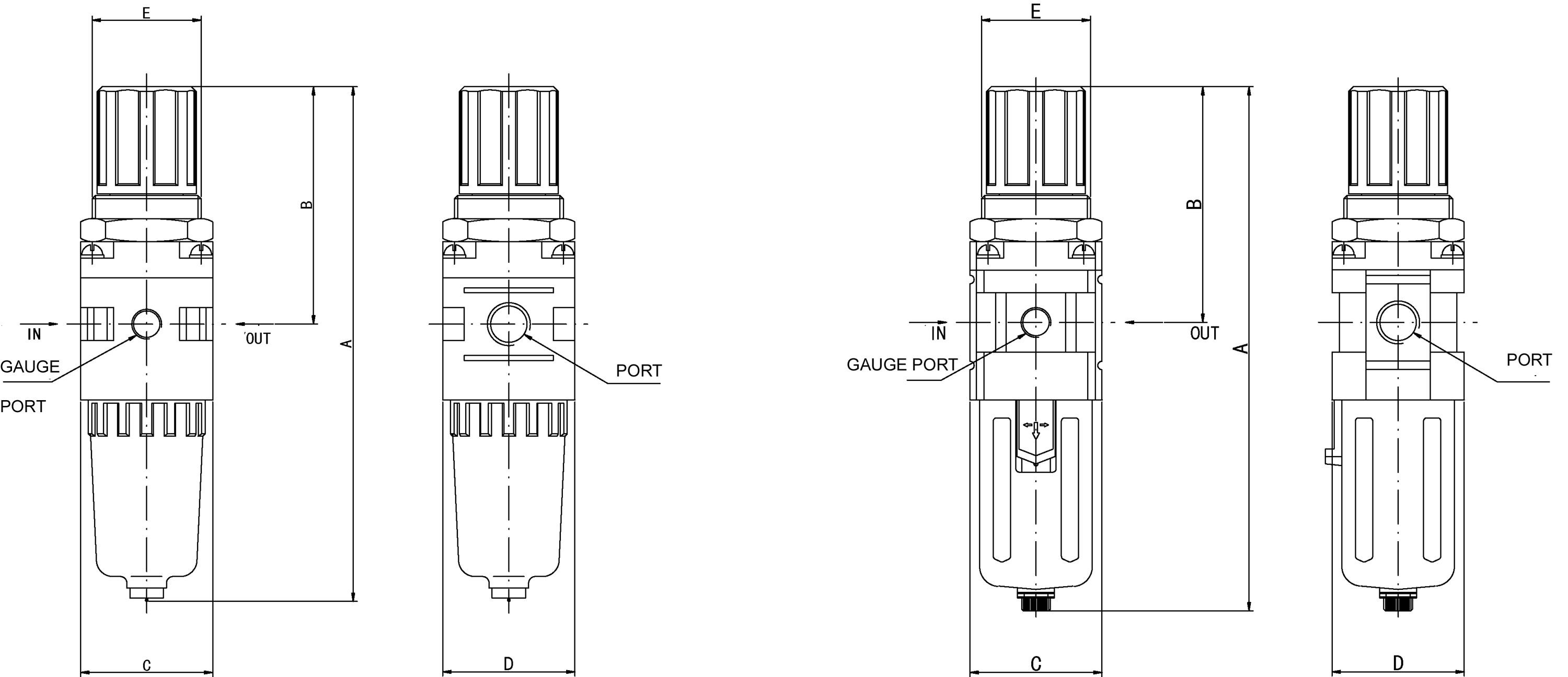

Top of Page                                           A Series Filter Regulator Dimensions

Model

Flow Rate
(lpm/scfm)

Port

Gauge Port

A
(mm/in)

B

(mm/in)

C

(mm/in)

D

(mm/in)

E

(mm/in)

Panel Hole Size
(mm/in)

Bracket

Weight

(kg/lb)

Gauge

AW1000-00

90

10-32 (M5)

1/16 Rc

109.5

50.5

25

28

20

20

B120

0.09

 GE-1-160-00

3

4.31

1.99

0.98

1.10

1.10

0.79

0.20

AW2000 –01

550

1/8 NPT

1/8 NPT

164.5

78

40

40

34

34

B220

0.36

GE-1 1/2-160-01

AW2000 –02

19

1/4 NPT

6.48

3.07

1.57

1.57

1.34

1.34

0.79

AW3000 –02

2000

1/4 NPT

1/8 NPT

211

92.5

53

53

40

40

B320

0.56

AW3000 –03

70

3/8 NPT

8.31

3.64

2.09

2.09

1.57

1.57

1.23

AW4000 –03

4000

3/8 NPT

1/4 NPT

262

112

70

70

54

54

B420

1.15

 GE-2-160-02

AW4000 –04

140

1/2 NPT

10.31

4.41

2.76

2.76

2.13

2.13

2.53

AW4000 -06

4500

3/4 NPT

1/4 NPT

267

114

70

75

54

54

B520

1.21

160

10.51

4.49

2.76

2.95

2.13

2.13

2.66

AW5000 –06

5500

3/4 NPT

1/4 NPT

338

116

90

90

54

54

B620

1.7

AW5000 –10

195

1 NPT

13.31

4.57

3.54

3.54

2.13

2.13

3.74


                                                               A Series FRL Bracket Dimensions:

IN (MM)

L BRACKET

L SPACER BRACKET

FOR

T BRACKET

T SPACER BRACKET

FOR

A

B

C

D

E

F

G

H

R

L

B110L

Y10L

AC1000

B110T

Y10T

AC1010

20

12

4.5

3

2.5

5

8

40

2.25

27

B210L

Y20L

AC2000

B210T

Y20T

AC2010

24

15

5.5

3

30

5

10

48

2.75

33

B310L

Y30L

AC3000

B310T

Y30T

AC3010

35

16

7

4

41

7

11

70

3.5

45

B410L

Y40L

AC4000

B410T

Y40T

AC4010

40

22

9

4

50

7

14

80

4.5

50

B510L

Y50L

AC4000-06

B510T

Y50T

AC4010-06

40

22

9

4

50

7

14

80

4.5

50

B610L

Y60L

AC5000

B610T

Y60T

AC5010

50

23

12

4

69.8

10.5

15

100

6

63

in (MM)

A

B

C

D

F

G

H

J

K

L

M

N

R

t

MOUNTING SCREW

FOR

B120

40

28

17

11

37.8

25

20.5

12.3

2

6.5

4.5

2.25

2

AR/AW1000

B220

55

34

35

19

50

30

33.5

20

10

5.4

5.4

2.7

2.3

AR/AW2000-2500

B320

53

40

21.5

14

64

39

42.5

25

1.5

6.5

6.5

3.25

2.3

AR/AW3000

B420

70

54

27

18

79.2

49.2

52.5

30

2

8.5

8.5

4.25

2.3

AR/AW4000-5000

B240

40

27

33

27

18

4.5

26

3

8.4

14

5.4

2.7

2.3

M4X8

AF/AL2000

B340

53

40

39

32

22.5

4.5

35

1.5

8

19

6.5

3.25

2.3

M4X8

AF/AL3000

B440

70

54

47

38

31.5

5.5

47

2

10.5

20

8.5

4.25

2.3

M5X10

AF/AL4000-04

B540

70

54

47

38

31.5

5.5

47

2

10.5

20

8.5

4.25

2.3

M5X10

AF/AL4000-06

B640

90

66

64

52

43

6.5

60

2

13

29

11

5.5

3.2

M6X10

AF/AL5000

PRESSURE GAUGE PART NO.

For

(in /MM)

T Port Size

A

B

C

D

GE-1-160-00

AR1000

R1/16 (PT)

0.6/15.3

0.4/10

0.47/12

1.0/25.4

GE-1 1/2-160-01

AR2000-3000

1/8 NPT

0.93/25.8

0.67/17.0

0.43/11

1.6/42

GE-2-160-02

AR4000-5000

1/4 NPT

0.97/24.8

0.77/19.7

0.54/14

2.1/52.4


 Top of Page


 Top of Page


 Top of Page


 Top of Page

Home  Push In Fitting Metal Fitting Compression Fitting Solenoid Valve Process Valve Actuated Valve Air Valve Air Regulator Terms of Use Terms of Sale Español To Order

Sizto Tech Corporation 892 Commercial Street, Palo Alto, CA 94303 USA
To order or locate a stocking distributor in your area, call  650-856 8833, Fax to 650- 856 8811, Toll Free: 866-9620170, or email Sales@StcValve.com
Copyright © 2001-2012 Sizto Tech Corporation, USA, All rights reserved. Last modified: February 3, 2012, Information contained herein may be changed without prior notification
