AB Series Aluminum Body Filter-Regulator-Lubricators (FRL) Specifications

Specifications Air Filter
Part No. AF2000
Description Filter
Port Size (NPT) 1/4"
Flow Rate (SCFM) 16
Filtration (Microns) 5-40
Max. Pressure (PSI) 150
Operating Temperature (°F) 40-140
Materials of Construction
Metal Body Aluminum Alloy (Epoxy Coated)
Plastic Bowl Polycarbonate
Metal Bowl Aluminum Alloy
Body Shield Painted Steel
Filter Standard: Sintered Brass (25µ)
Option: Plastic (5µ)

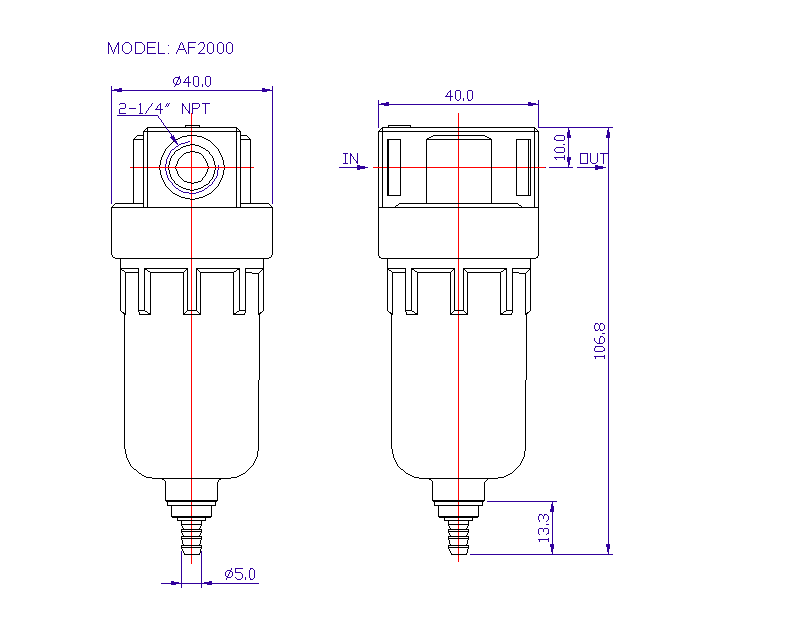

Dimensions: AF2000 (Unit = mm)
