Bulkhead Union

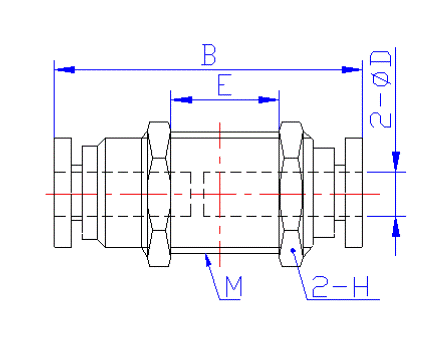

 Model BU Dimensions:
Dimensions for Reference Use Only: Imperial fittings in Inch, Metric fittings in mm, U.S.O.


Bulkhead Union

Part No.

Tube OD

A

B

E

H

P

T

WEIGHT (g)

BU-1/8

  1/8

0.44

1.37

0.50

0.55

0.38

0.46

17.7

BU-5/32

  5/32

0.44

1.37

0.50

0.55

0.38

0.46

17.7

BU-3/16

  3/16

0.31

1.48

0.59

0.67

0.42

0.54

28.6

BU-1/4

  1/4

0.47

1.42

0.53

0.67

0.38

0.54

23.4

BU-5/16

  5/16

0.30

1.61

0.65

0.74

0.55

0.62

32.6

BU-3/8

  3/8

0.54

1.72

0.65

0.94

0.57

0.77

50.1

BU-1/2

  1/2

0.36

1.77

0.69

1.02

0.78

0.86

58.6

BU-4

4

10.7

35.2

13.4

14

8.4

11.8

18.6

BU-6

6

9.9

35.4

14.3

17

9.5

13.7

23.6

BU-8

8

7.8

41.1

16.2

19

14.1

15.9

32.8

BU-10

10

9.2

44.7

16.6

24

16.9

19.5

50.7

BU-12

12

8.5

45.3

16.6

26

19.0

21.7

60.6

Link to Push-In Air Fitting Installation Procedure and Specifications
