Extended Elbow Connector

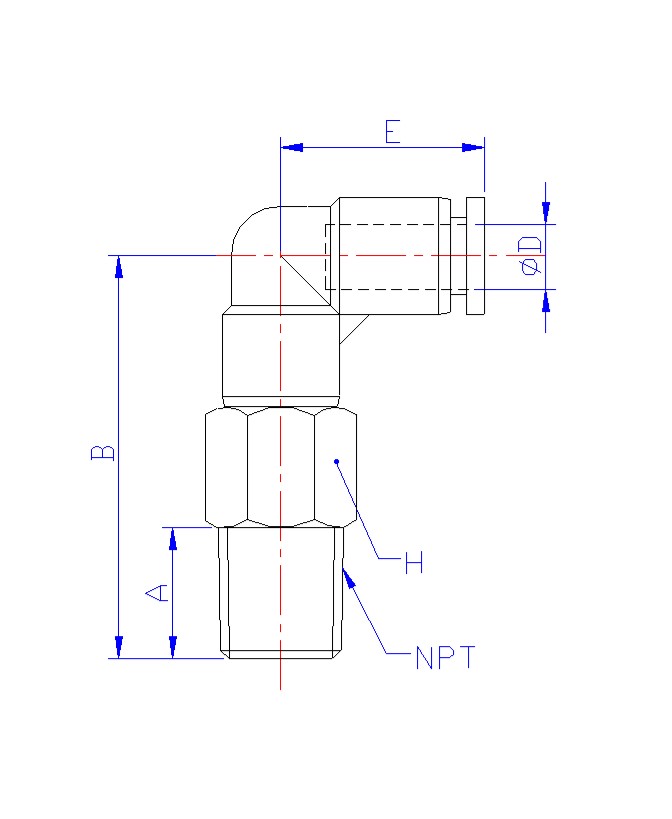

 Model EE Dimensions:
Dimensions for Reference Use Only: Imperial fittings in Inch, Metric fittings in mm, U.S.O.)
Note: The EE (Extended Elbow) is designed to be higher than a ME ( Male Elbow) of the same size, so that
when installed side by side the EE can be rotated above the ME and the tube from the EE can go over the ME.


Extended Elbow

Part No.

Tube OD

T
Pipe Size

A

B

C

E

H

P

WEIGHT (g)

 EE5/32 10-32

  5/32

10-32UNF

0.16

1.36

0.61

0.70

7/16

0.41

15.2

 EE 5/32 N1/8

  5/32

NPT1/8

0.31

1.48

0.61

0.70

7/16

0.41

16.8

 EE 3/16 N1/8

  3/16

NPT1/8

0.30

1.53

0.67

0.75

7/16

0.41

17.8

 EE 3/16 N1/4

  3/16

NPT1/4





0.67



9/16





 EE 3/16 N3/8

  3/16

NPT3/8

0.46

1.89

0.67

0.75

11/16

0.43

39.8

 EE 1/4 N1/8

  1/4

NPT1/8

0.40

1.64

0.68

0.85

1/2

0.52

22.8

 EE 1/4 N1/4

  1/4

NPT1/4

0.36

1.82

0.68

0.85

9/16

0.52

33.1

 EE 1/4 N3/8

  1/4

NPT3/8

0.45

1.94

0.68

0.85

11/16

0.52

40.0

 EE 5/16 N1/8

  5/16

NPT1/8

0.37

1.81

0.73

0.90

9/16

0.58

32.5

 EE 5/16 N1/4

  5/16

NPT1/4

0.39

1.90

0.73

0.90

9/16

0.58

34.4

 EE 5/16 N3/8

  5/16

NPT3/8

0.41

2.01

0.73

0.90

11/16

0.58

41.2

 EE 3/8 N1/4

  3/8

NPT1/4

0.34

2.17

0.83

1.10

11/16

0.71

62.4

 EE 3/8 N3/8

  3/8

NPT3/8

0.45

2.17

0.83

1.10

11/16

0.71

58.5

 EE 3/8 N1/2

  3/8

NPT1/2

0.54

2.56

0.83

1.10

7/8

0.71

116.6

 EE 1/2 N1/4

  1/2

NPT1/4

0.43

2.50

0.93

1.13

7/8

0.86

122.7

 EE 1/2 N3/8

  1/2

NPT3/8

0.43

2.47

0.89

1.16

7/8

0.86

85.5

 EE 1/2 N1/2

  1/2

NPT1/2

0.51

2.60

0.89

1.16

7/8

0.86

123.4





















Part No.

Tube OD

T
Pipe Size

A

B

C

E

H

P

WEIGHT (g)

EE 4 M5

4

M5

5.4

36.1

14.4

17.8

10.0

10.6

15.4

EE 4 M6

4

M6

5.1

35.2

14.6

17.8

10.0

10.6

15.7

EE 4 1/8

4

R1/8

7.3

36.8

14.4

17.8

10.0

10.6

14.0

EE 4 R1/4

4

R1/4

8.9

36.4

13.8

17.8

14.0

10.6

21.8

EE 6 M5

6

M5

6.2

39.0

15.3

20.6

12.0

13.5

22.8

EE 6 M6

6

M6

5.8

39.6

16.1

20.6

12.0

13.5

23.2

EE 6 R1/8

6

R1/8

7.7

38.8

15.7

20.6

12.0

13.5

21.4

EE 6 R1/4

6

R1/4

8.9

45.0

15.5

20.6

14.0

13.5

30.4

EE 6 R3/8

6

R3/8

10.2

44.9

16.1

20.6

17.0

13.5

40.8

EE 6 R1/2

6

R1/2

12.7

48.1

15.8

20.6

21.0

13.5

63.5

EE 8 R1/8

8

R1/8

7.3

42.2

16.7

21.8

14.0

14.7

29.6

EE 8 R1/4

8

R1/4

9.2

46.7

16.4

21.8

14.0

14.7

31.8

EE 8 R3/8

8

R3/8

10.0

46.5

16.6

21.8

17.0

14.7

42.1

EE 8 R1/2

8

R1/2

11.6

52.7

16.5

21.8

21.0

14.7

66.8

EE 10 R1/8

10

R1/8

7.8

53.1

20.7

26.8

17.0

18.4

61.9

EE 10 R1/4

10

R1/4

8.8

56.3

20.5

26.7

17.0

18.2

61.2

EE 10 R3/8

10

R3/8

11.0

57.0

20.5

26.7

17.0

18.2

55.5

EE 10 R1/2

10

R1/2

12.9



20.2

26.8

21.0





EE 12 R1/4

12

R1/4

8.9

62.6

20.6

28.2

19.0

20.3

90.3

EE 12 R3/8

12

R3/8

10.7

62.9

20.6

28.2

19.0

20.3

82.6

EE 12 R1/2

12

R1/2

12.1



20.6

28.2

21.0

20.3



Link to Push-In Air Fitting Installation Procedure and Specifications
