Reduced Union

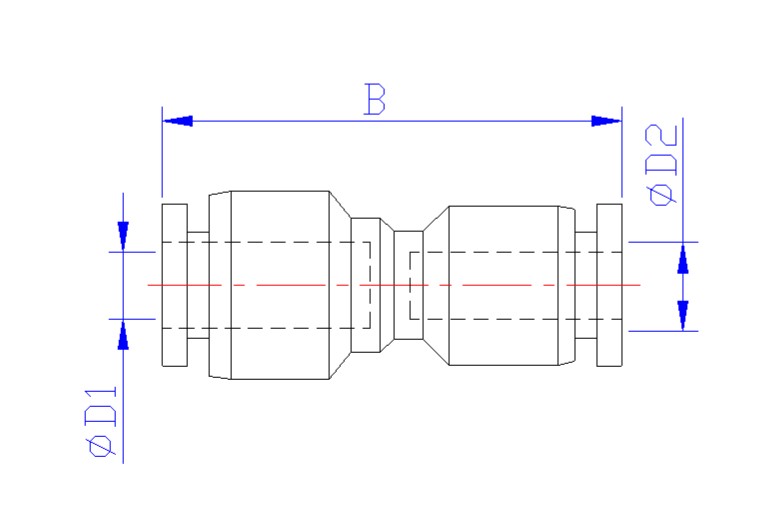

 Model RU Dimensions:

Dimensions for Reference Use Only: Imperial fittings in Inch, Metric fittings in mm, U.S.O.

Reduced Union

Part No.

B

D

D1

P

P1

RU 5/32-1/8

1.23

1/8

5/32

0.41

0.41

 RU 3/16-5/32

1.27

5/32

3/16

0.41

0.44

 RU 1/4-5/32

1.35

5/32

1/4

0.41

0.52

 RU 1/4-3/16

1.39

3/16

1/4

0.44

0.52

 RU 5/16-1/4

1.55

1/4

5/16

0.52

0.58

 RU 3/8-1/4

1.67

1/4

3/8

0.52

0.72

 RU 3/8-5/16

1.67

5/16

3/8

0.58

0.72

 RU 1/2-3/8

1.81

3/8

1/2

0.72

0.85

RU 6-4

33.9

4

6

10.5

13.2

RU 8-6

38.7

6

8

13.2

14.8

RU 10-8

42.5

8

10

14.8

18.4

RU 12-10

47.4

10

12

18.4

20
