Y Connector

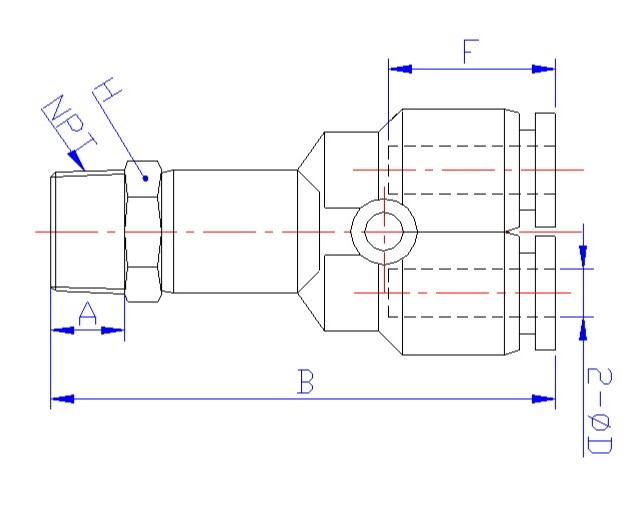

 Model YC Dimensions:
Dimensions for Reference Use Only: Imperial fittings in Inch, Metric fittings in mm, U.S.O.

Y Connector

PART NO.

TUBE OD

PIPE SIZE

A

B

C

D

D1

F

H

L

X

Y

WEIGHT (g)

YC 5/32 10-32

  5/32

10-32UNF

0.18

1.50

0.56

0.16

0.12

0.57

  7/16

0.41

0.38

0.46

9.3

 YC 5/32 N1/8

  5/32

NPT1/8

0.31

1.63

0.56

0.16

0.12

0.56

  7/16

0.42

0.38

0.46

11.0

 YC 5/32 N1/4

  5/32

NPT1/4

0.40

1.74

0.55

0.15

0.12

0.57

  9/16

0.41

0.38

0.46

16.6

 YC 3/16 10-32

 3/16

10-32UNF

0.24

1.62

0.61

0.19

0.08

0.58

  7/16

0.44

0.43

0.50

12.7

 YC 3/16 N1/8

 3/16

NPT1/8

0.28

1.68

0.59

0.20

0.08

0.59

  7/16

0.44

0.43

0.50

12.5

 YC 3/16 N1/4

 3/16

NPT1/4

0.40

1.84

0.60

0.19

0.08

0.60

  9/16

0.45

0.43

0.50

17.8

 YC 3/16 N3/8

 3/16

NPT3/8

0.47

1.91

0.60

0.19

0.08

0.61

 11/16

0.45

0.43

0.50

24.7

 YC 1/4 10-32

 1/4

10-32UNF

0.22

1.66

0.63

0.26

0.12

0.63

  1/2

0.53

0.45

0.53

14.5

 YC 1/4 N1/8

 1/4

NPT1/8

0.31

0.18

0.61

0.25

0.12

0.62

  1/2

0.53

0.45

0.53

15.8

 YC 1/4 N1/4

 1/4

NPT1/4

0.41

1.86

0.63

0.25

0.12

0.62

  9/16

0.54

0.45

0.53

20.2

 YC 1/4 N3/8

 1/4

NPT3/8

0.48

1.93

0.70

0.25

0.12

0.61

 11/16

0.53

0.45

0.53

26.6

 YC 5/16 N1/8

 5/16

NPT1/8

0.32

1.81

0.70

0.32

0.12

0.65

9/16

0.58

0.54

0.61

19.6

 YC 5/16 N1/4

 5/16

NPT1/4

0.40

1.89

0.71

0.32

0.12

0.64

  9/16

0.58

0.54

0.61

22.2

 YC 5/16 N3/8

 5/16

NPT3/8

0.48

1.96

0.70

0.31

0.12

0.65

 11/16

0.58

0.54

0.61

29.4

YC 3/8 N1/8

 3/8

NPT1/8

0.32

2.28

0.96

0.37

0.16

0.76

  11/16

0.71

0.66

0.74

32.7

 YC 3/8 N1/4

 3/8

NPT1/4

0.41

2.39

0.95

0.38

0.16

0.76

 11/16

0.71

0.66

0.74

32.6

 YC 3/8 N3/8

 3/8

NPT3/8

0.49

2.44

0.95

0.37

0.16

0.77

 11/16

0.72

0.66

0.74

39.3

 YC 3/8 N1/2

 3/8

NPT1/2

0.56

2.54

0.93

0.37

0.16

0.75

  7/8

0.71

0.66

0.74

49.5

 YC 1/2 N1/4

 1/2

NPT1/4

0.38

2.43

0.93

0.50

0.16

0.79

 7/8

0.85

0.79

0.88

51.6

 YC 1/2 N3/8

 1/2

NPT3/8

0.47

2.50

0.92

0.50

0.16

0.78

 7/8

0.87

0.79

0.88

54.9

 YC 1/2 N1/2

 1/2

NPT1/2

0.56

2.61

0.93

0.50

0.16

0.80

  7/8

0.84

0.79

0.88

59.7





























PART NO.

TUBE OD

PIPE SIZE

A

B

C

D

D1

F

H

L

X

Y

WEIGHT (g)

YC 4 M5

4

M5

5.3

38.8

16.5

4.3

3.0

13.8

10

10.4

9.7

11.7

9.5

YC 4 M6

4

M6

4.8

38.5

13.5

4.2

3.0

13.9

10

10.4

9.7

11.7

9.5

YC 4 1/8

4

R1/8

7.3

40.1

16.2

4.2

3.0

14.3

10

10.5

9.7

11.7

10.6

YC 4 R1/4

4

R1/4

9.1

42.5

15.8

4.1

3.0

13.9

14

10.5

9.7

11.7

14.5

YC 6 M5

6

M5

5.6

41.6

17.7

6.1

3.0

15.5

12

13.2

11.5

13.5

14.6

YC 6 M6

6

M6

5.7

42.8

18.1

6.2

3.0

15.3

12

13.4

11.5

13.5

15.7

YC 6 R1/8

6

R1/8

8.0

44.3

18.0

6.2

3.0

15.5

12

13.6

11.5

13.5

15.6

YC 6 R1/4

6

R1/4

9.0

44.8

14.9

6.1

3.0

15.3

14

13.3

11.5

13.5

17.8

YC 6 R3/8

6

R3/8

10.6

47.6

17.4

6.2

3.0

15.4

17

13.4

11.5

13.5

25.0

YC 6 R1/2

6

R1/2

12.3

50.6

18.3

6.2

3.0

15.1

21

13.4

11.5

13.5

39.4

YC 8 R1/8

8

R1/8

7.2

45.4

18.0

8.1

3.0

16.9

14

14.6

13.6

15.6

18.5

YC 8 R1/4

8

R1/4

9.2

46.4

17.7

8.1

3.0

16.9

14

14.7

13.6

15.6

20.0

YC 8 R3/8

8

R3/8

9.7

48.3

16.2

8.0

3.0

15.7

17

14.6

13.6

15.6

26.7

YC 8 R1/2

8

R1/2

12.3

50.5

18.4

8.2

3.0

17.1

21

14.6

13.6

15.6

39.1

YC 10 R1/8

10

R1/8

7.4

57.0

19.0

10.1

4.0

21.0

17

18.0

16.0

18.3

30.5

YC 10 R1/4

10

R1/4

8.8

59.3

18.7

9.9

4.0

21.2

17

18.1

16.0

18.3

32.9

YC 10 R3/8

10

R3/8

11.4

60.5

24.3

10.1

4.0

20.0

17

17.9

16.0

18.3

37.9

YC 10 R1/2

10

R1/2

12.0

62.9

18.9

10.1

4.0

21.4

21

18.2

16.0

18.3

47.3

YC 12 R1/4

12

R1/4

9.1

61.4

21.3

12.0

4.0

21.9

19

20.8

18.6

21.5

44.4

YC 12 R3/8

12

R3/8

11.0

63.4

24.6

12.2

4.0

21.8

19

20.1

18.6

21.5

47.6

YC 12 R1/2

12

R1/2

13.2

65.5

24.6

11.9

4.0

21.8

21

20.8

18.6

21.5

57.8
