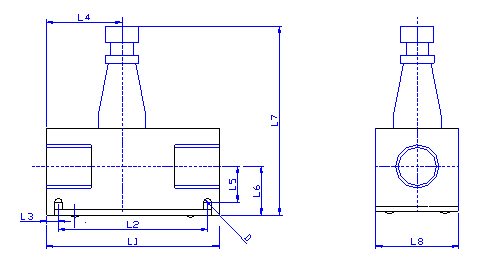

 Flow Control Valve Dimensions AS Series In-Line
 Dimensions for Reference Use Only: UNIT IN MM, U.S.O.

PART NO REF NO. PORT FLOW RATE
LPM/SCFM @70PSI		 L1 L2 L3 L4 L5 L6 L7 L8 D
AS N1/8 AS2000-01 1/8 90/3.2 40 30 5 17 10 15.5 50-54.5 16 4.5
AS N1/4 AS2000-02 1/4 340/12 40 30 5 23 11.5 17 51.5-56 20 4.5
  AS3000-02 1/4 810/29 56 45.5 5.25 25 13.2 21 62-69 26 5.5
AS N3/8 AS3000-03 3/8 810/29 56 45.5 5.25 25 13.2 21 62-69 26 5.5

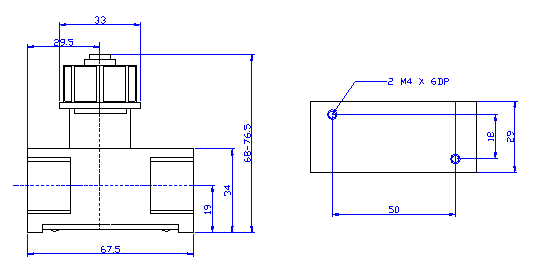

AS N1/2 AS4000-04 1/2 1670/60 67.5 50 8.75 29.5 19 19 68-76.5 29

           AS N1/2
