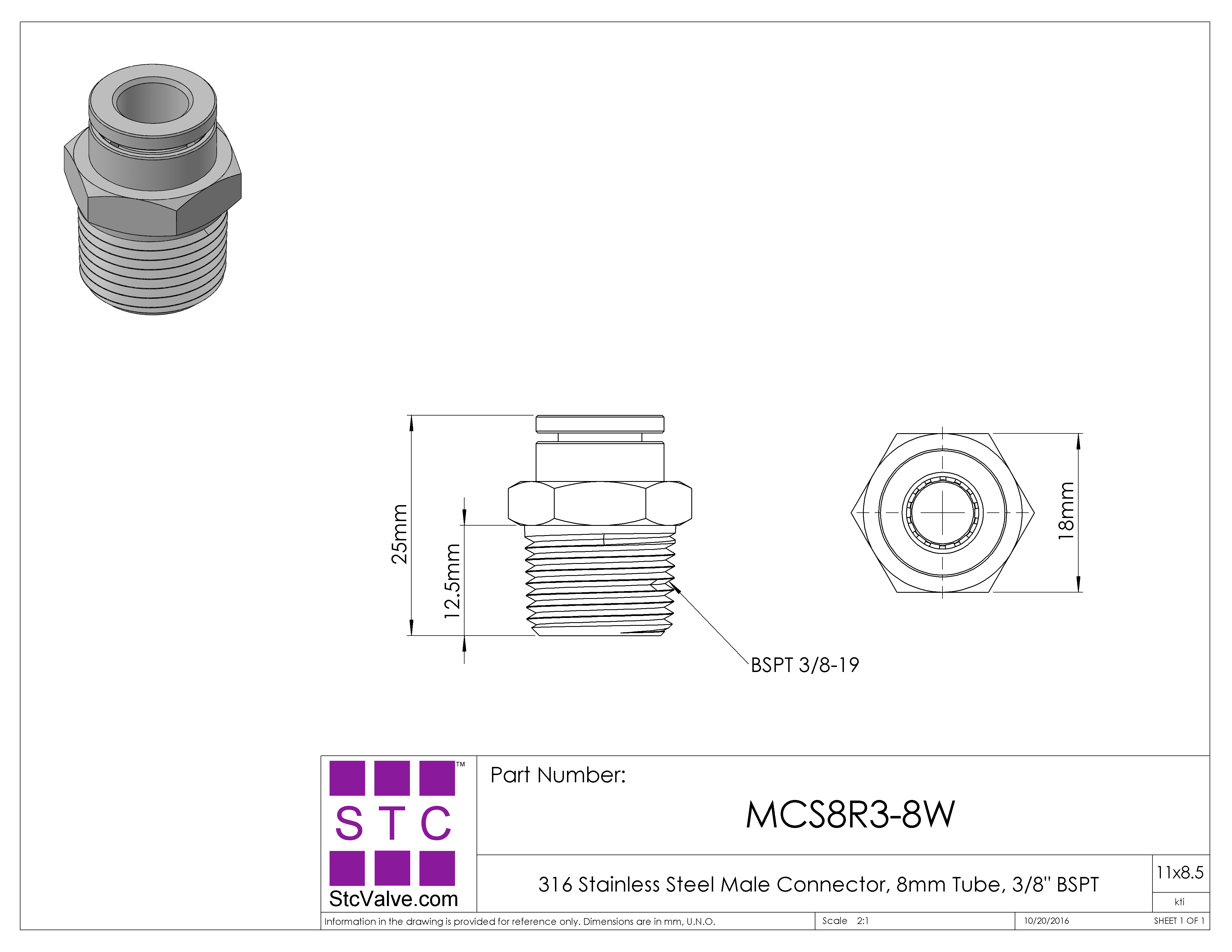

Male Connector Stainless Steel Push In Fittings: MCS 8 R3/8 W

MCS 8 R3/8 W
Shape Male Connector
Connection Tube to Male Threaded Pipe
Body Material T316 Stainless Steel
Release Button Material 300 Series Stainless Steel
Grip Ring or Collet Material 300 Series Stainless Steel
O-Ring Material FKM
For Tube OD 8mm
Pipe Size, Type 3/8" BSPT
Operating Pressure Range 0 - 250PSI (0 - 1650kPa)
Vacuum 0 - 30" Hg (0 - 760 mm Hg)
Operating Temperature 5 - 230°F (-15 to 110°C)
Recommended Tubing Material Polyurethane, Nylon, Polyethylene, Polypropylene, and Hard metal tubing (tubing must be pre-grooved)
Service Air, Liquid
Sterilization Temperature Up to 280°F (138°C)
RoHS Compliant
