Model: V3

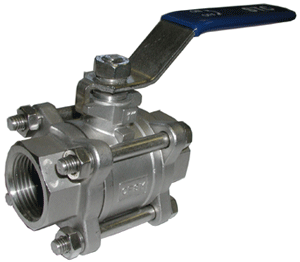

Model: V3 SPECIFICATIONS

Working Pressure:1/2"-2" 1000PSI WOG

                              2 1/2"-3" 800PSI WOG

Temperature  Range:-60 to 450ºF
Connection: NPT
Full Port
Padlocking device and actuator mounting bracket
 Material Options: 316 stainless steel



MAIN PARTS AND MATERIALS
NO
PART NAME
MATERIAL
QTY
1
SEAT PTFE
2
2
BALL SS316/CF8M
1
3
JOINT GASKET PTFE
1
4
CAP SS316
1
5
BODY SS316
1
6
STEM SS316
1
7
THRUST WASHER PTFE
1
8
STEM PACKING PTFE
1
9
GLAND NUT SS304
1
10
STEM WASHER SS304
1
11
STEM NUT SS304
1
12
HANDLE COVER PLASTIC
1
13
HANDLE SS304
1

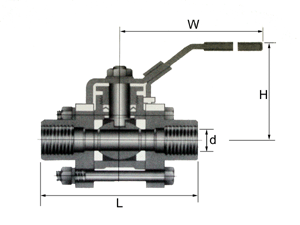

     DIMENSIONS (mm)
SIZE
1/4"
3/8"
1/2"
3/4"
1"
11/4"
11/2"
2"
21/2"
3"
4"

d
(Norminal size)
in
0.25
0.38
0.5
0.75
1
1.25
1.5
2
2 1/2
3
4
H
mm
57
57
68
70
80
84
93
100
142
155
172
in
2.24
2.24
2.68
2.76
3.15
3.31
3.66
3.94
5.59
6.10
6.77
W
mm
96
96
124
124
142
142
202
202
250
250
300
in
3.78
3.78
4.88
4.88
5.99
5.99
7.95
7.95
9.84
9.84
11.81
L
mm
68
68
72
83
90
112
120
147
174
193
216
in
2.56
2.56
2.84
3.35
3.62
4.33
4.48
5.59
6.85
7.60
8.50
