AB Series Aluminum Body Filter-Regulator-Lubricators (FRL)-Specifications

Filter-Regulator-Lubricators

Part No.

Description

Unit Price

Port Size (NPT)

Flow Rate (SCFM)

Filtration
(Micron)

Regulating Range (PSI)

Max Pressure (PSI)

Operating Temp °F

BC3000

Filter- Regulator- Lubricator

$65.34*

3/8

60

5-40

7 to 125

150

40-140

BC4000

Filter- Regulator- Lubricator

$65.34*

1/2

70

5-40

7 to 125

150

40-140

* Price Includes  Pressure Gauge & Mounting Bracket.
These FRL components are of Modular design with joiner clamps and allow you to easily connect and disconnect FRL components for simple installation and maintenance.

Material of Constructions



Metal Body

Aluminum alloy (Epoxy Coated)

Plastic Body

Polycarbonate

Body Shield

Painted Steel

Filter Sintered Brass (40µ)  or Plastic (5µ)

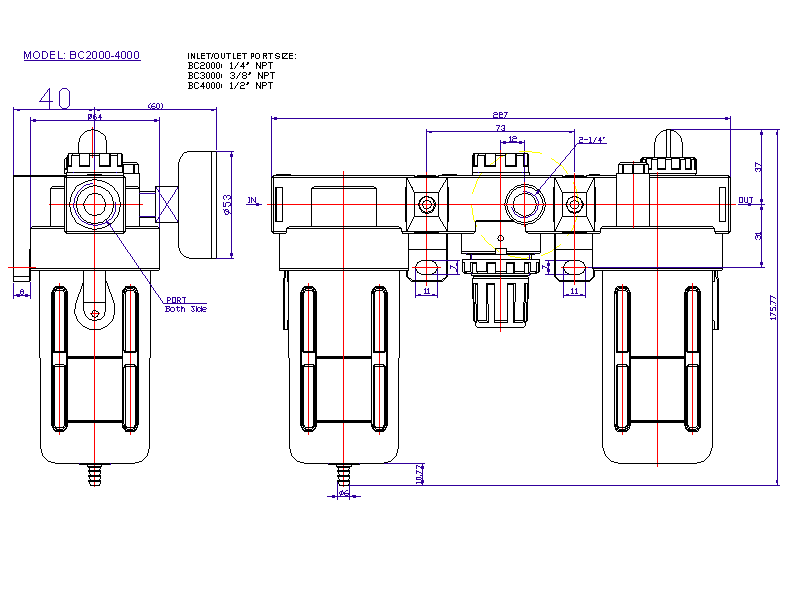

DIMENSIONS:  BC2000-4000  (UNIT=MM)
