Air Cylinders: Complete line of compact, ISO, round, and tie-rod


Aluminum & Stainless Steel Cylinders
(Click cylinder picture to get price information)
Model Picture Links Bore Size (mm) Stroke (mm) Magnet (Optional) Options

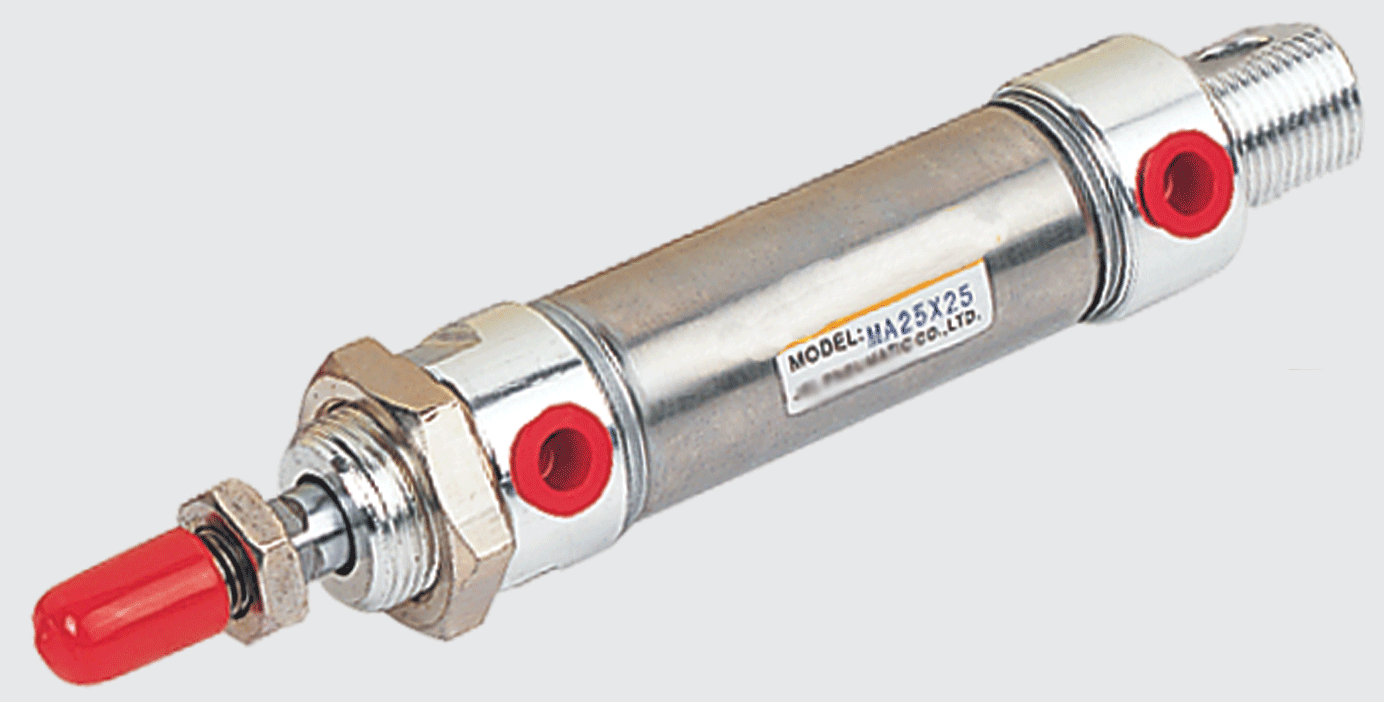

MA Series Stainless Steel Round Cylinder Double Acting MA Air Cylinder, Stainless Steel Price

Specifications
12
16
20
25
32
40
25-500 Standard = without magnet
S = Magnet for Hall Sensor
Mounting Options:
Standard= Standard Front Nose Mount and Back Pivot Mount
LB = Front & Back Mount
FA = Front Mounting Flange
FB = Back Mounting Flange
SDB = Back Clevis Bracket with Pin
I = Rod Pivot with Pin
Single Acting MSA

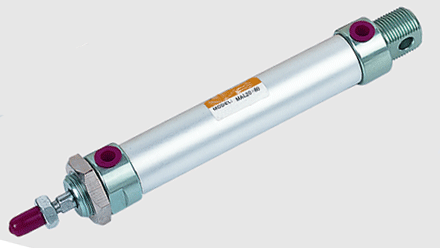

MAL Series Aluminum Round Cylinder Double Acting MAL Air Cylinder Price

Specifications
16
20
25
32
40
25-500 Standard = without magnet
S = Magnet for Hall Sensor
Mounting Options:
Standard= Standard Front Nose Mount and Back Pivot Mount
LB = Front & Back Mount
FA = Front Mounting Flange
FB = Back Mounting Flange
SDB = Back Clevis Bracket with Pin
I = Rod Pivot with Pin
Single Acting MALS

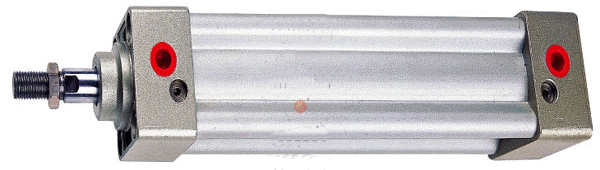

SC Series Tie-Rod Cylinder Double Acting SC Tie-Rod cylinder Price

Specifications
32
40
50
63
80
100
125
160
200
250
320
25-1000 Standard = without magnet
S = Magnet for Hall Sensor
Mounting Options:
Standard= Standard Mount
LB = Foot Mount
FA = Front Mounting Flange
FB = Back Mounting Flange
CA = Pivot Bracket with Pin
CB = Clevis Bracket with Pin
TCM = Swinging Type Attaching Foot Seat
Y/I = Rod Clevis or Pivot with Pin
SU Series Enclosed Tie-Rod Cylinder Double Acting SU Air Cylinder
SDA Series Compact Round Cylinder Double Acting SDA Compact Air cylinder Price

Specifications
12
16
20
25
32
40
50
63
80
100
5-130 Standard = without magnet
S = Magnet for Hall Sensor
Thread Type Options:
Standard= Shaft with Female Thread
Single Acting SSA

Reed Switches
Part No. Description Picture Specifications
AL-03R-MA MAL Reed Switch for MA or MAL cylinder Reed Switch • Reed Switch 5-240 V (DC/AC)
• 100mA
• 10W
• with 39" Lead Wires
• CE
AL-11R-SDA Reed Switch for SDA cylinder
AL-21R-SC SU Reed Switch for SC or SU cylinder
