Angle Air Flow Control Valve (Speed Control)

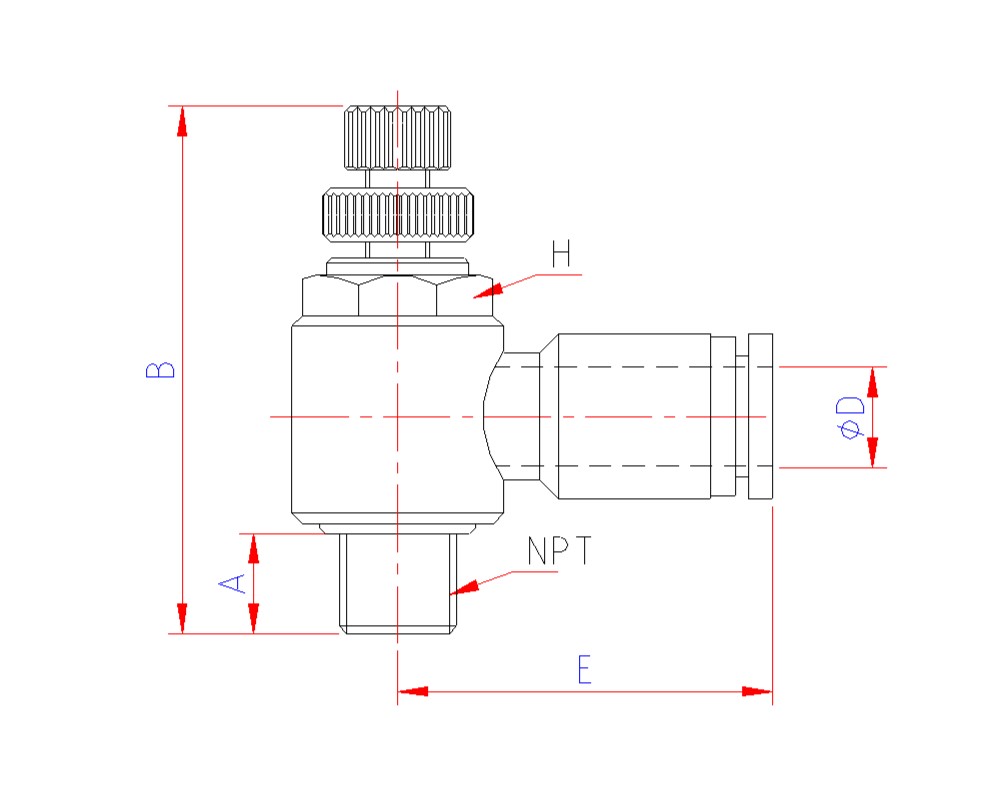

Flow Control Model CV Specifications and Dimensions:
Dimensions for Reference Use Only: Imperial fittings in Inch, Metric fittings in mm, U.S.O.

bulletComplete rotation of the valve body around the bolt allows for optimum positioning of tubing
bulletCompact in size provide space saving installations
bulletSpecial adjustment needle design allows large adjustment ranges with high precision
bulletAdjustment needles and banjo bodies are retained, preventing accidental loss of needle or lock nut

Angle Air Flow Control Valve (Speed Control)

PART NO.

TUBE OD

T
PIPE SIZE

A

B

C

D

E

H

P

WEIGHT (g)

CV 1/8 10-32

  1/8

10-32UNF

0.16   0.43   0.47   0.16  0.80 0.31  0.42   8.0

CV 1/8 N1/8

  1/8

NPT 1/8

0.34

0.55

0.56

0.16

0.87

0.44

0.43

18.0

CV 5/32 10-32   5/32   10-32UNF 0.16   0.43   0.47   0.16  0.80 0.31  0.42   8.0

CV 5/32 N1/8

  5/32

NPT1/8

0.34

0.55

0.56

0.16

0.87

0.44

0.43

18.0

CV 3/16 N1/8

  3/16

NPT1/8

0.34

0.56

0.56

0.19

0.95

0.38

0.45

18.0

CV 1/4 10-32

  1/4

10-32UNF

0.21

0.46

0.60

0.26

0.94

0.31

0.52

9.0

CV 1/4 N1/8

  1/4

NPT1/8

0.34

0.58

0.60

0.26

0.94

0.44

0.52

18.6

CV 1/4 N1/4

  1/4

NPT1/4

0.42

0.71

0.61

0.26

1.04

0.56

0.51

36.4

CV 1/4 N3/8

  1/4

NPT3/8

0.61

0.85

0.60

0.26

1.10

0.74

0.51

69.1

CV 5/16 N1/8

  5/16

NPT1/8

0.34

0.57

0.65

0.32

1.00

0.38

0.57

19.4

CV 5/16 N1/4

  5/16

NPT1/4

0.49

0.72

0.63

0.32

1.05

0.55

0.57

37.3

CV 5/16 N3/8

  5/16

NPT3/8

0.59

0.87

0.61

0.32

1.13

0.74

0.58

69.4

CV 3/8 N1/4

  3/8

NPT1/4

0.40

0.81

0.74

0.38

1.27

0.56

0.72

41.5

CV 3/8 N3/8

  3/8

NPT3/8

0.47

0.88

0.71

0.38

1.28

0.74

0.72

71.6

CV 3/8 N1/2

  3/8

NPT1/2

0.64

0.99

0.74

0.38

1.40

0.94

0.71

101.6

CV 1/2 N3/8

  1/2

NPT3/8

0.59

0.98

0.82

0.50

1.35

0.74

0.83

75.4

CV 1/2 N1/2

  1/2

NPT1/2

0.66

1.03

0.77

0.50

1.45

0.95

0.85

104.8























Part No.

Tube OD

T
Pipe Size

A

B

C

D

E

H

P

WEIGHT (g)

CV 4 M5

4

M5

4.7

11.4

23.3

4.1

20.1

8.0

10.7

8.9

CV 4 M6

4

M6

5.2

10.6

13.9

4.1

20.2

8.0

10.6

9.1

CV 4 R1/8

4

R1/8

8.6

14.0

13.7

4.1

22.4

9.9

10.5

17.7

CV 4 R1/4

4

R1/4

0.5

0.7

0.6

0.2

26.3

14.0

12.8

36.8

CV 6 M5

6

M5

4.5

12.5

14.9

6.1

23.8

8.0

13.0

9.7

CV 6 M6

6

M6

5.8

11.5

15.1

5.2

22.4

7.1

11.9

9.8

CV 6 R1/8

6

R1/8

8.6

14.4

14.9

6.1

23.7

9.9

13.1

18.3

CV 6 R1/4

6

R1/4

12.1

18.1

14.9

6.1

26.0

14.0

13.1

36.4

CV 6 R3/8

6

R3/8

13.3

19.7

15.3

6.1

27.5

18.9

13.1

71.7

CV 8 R1/8

8

R1/8

8.5

14.6

15.9

8.2

25.5

9.9

14.6

19.1

CV 8 R1/4

8

R1/4

11.4

17.9

15.9

8.1

26.9

14.1

14.6

37.6

CV 8 R3/8

8

R3/8

13.4

20.4

16.1

8.0

29.4

19.0

14.5

73.0

CV 8 R1/2

8

R1/2

16.2

23.5

15.0

8.2

31.2

23.9

14.6

104.3

CV 10 R1/4

10

R1/4

11.5

20.7

19.1

10.1

31.7

14.0

18.3

40.3

CV 10 R3/8

10

R3/8

13.1

22.0

18.5

10.1

32.6

18.9

18.4

74.9

CV 10 R1/2

10

R1/2

16.1

24.7

19.1

9.9

35.8

23.9

18.1

108.3

CV 12 R1/4

10

R1/4

11.3

21.6

20.4

12.1

31.7

13.9

21.3

43.1

CV 12 R3/8

12

R3/8

13.0

23.2

21.0

12.2

35.4

19.1

21.0

77.2

CV 12 R1/2

12

R1/2

16.6

26.4

21.5

12.0

38.7

23.9

20.9

110.0

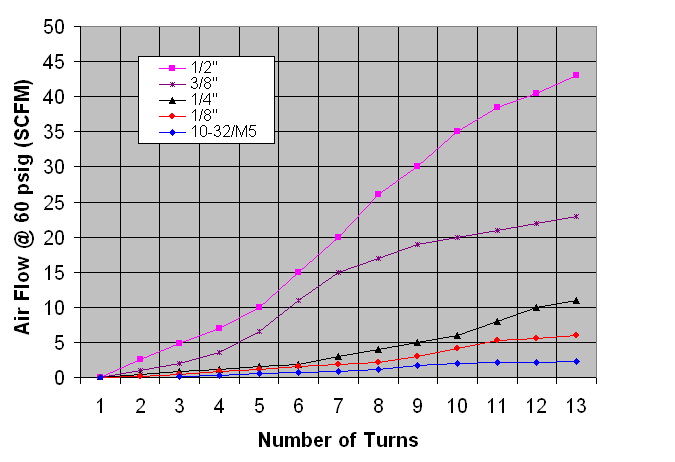

 Angle Air Flow Control Valve Flow Characteristics

Link to Push-In Air Fitting Installation Procedure and Specifications
