STC Pilot Operated Pneumatic Directional Control Valve Dimensions (UNIT=MM)

Part No.

Valve Picture

Port Size
(NPT)

Description

Port No/ Position

Cv
Flow Rate

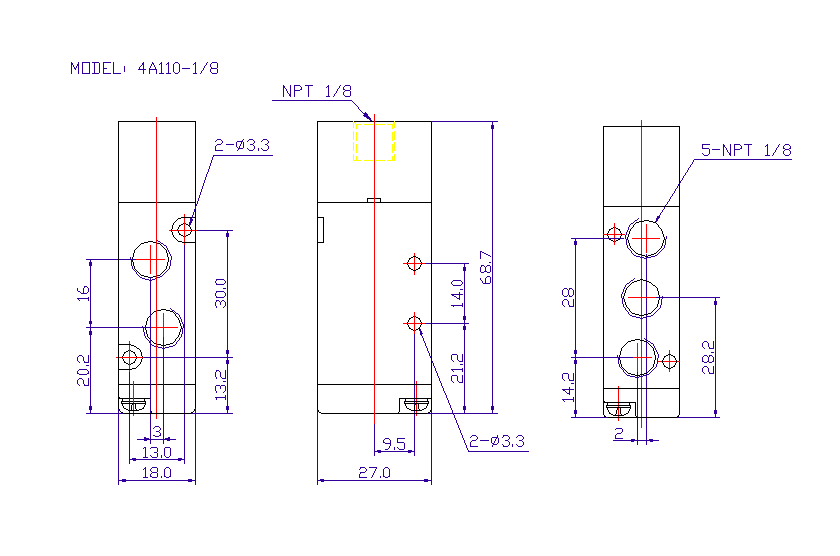

4A110-1/8






1/8 NPT

4 Way 2 position
Single Pilot
Air Valves

5/2
Four Way Valve



 Cv = 0.67
25 SCFM @100 PSI

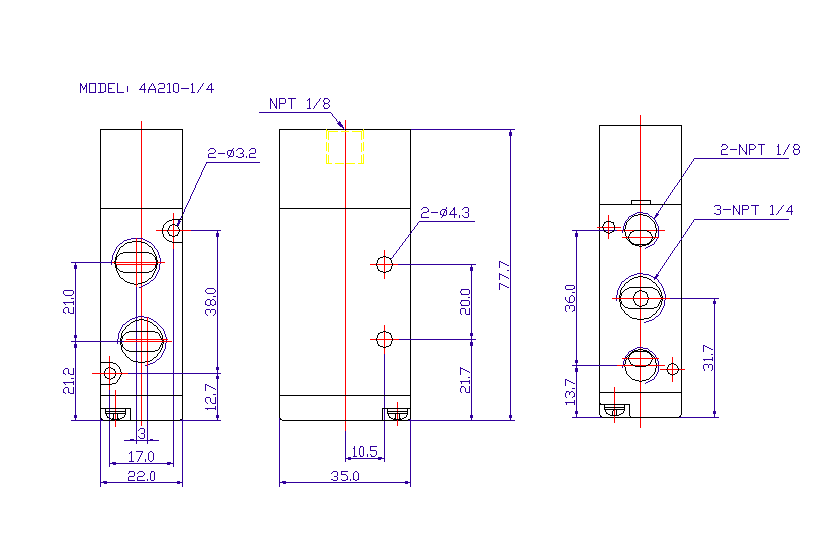

4A210-1/4

1/4 NPT

Cv = 0.78
53 SCFM @100 PSI

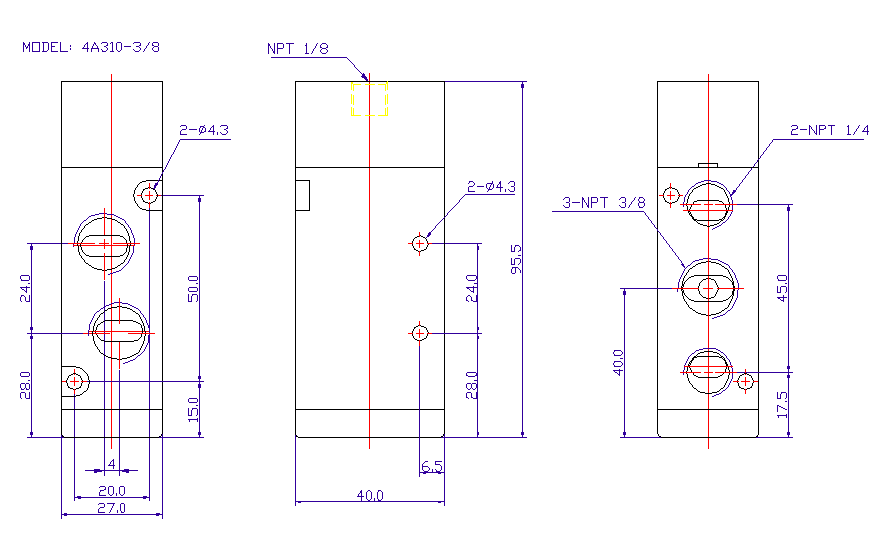

4A310-3/8

 3/8 NPT

Cv = 1.68
80 SCFM @100 PSI

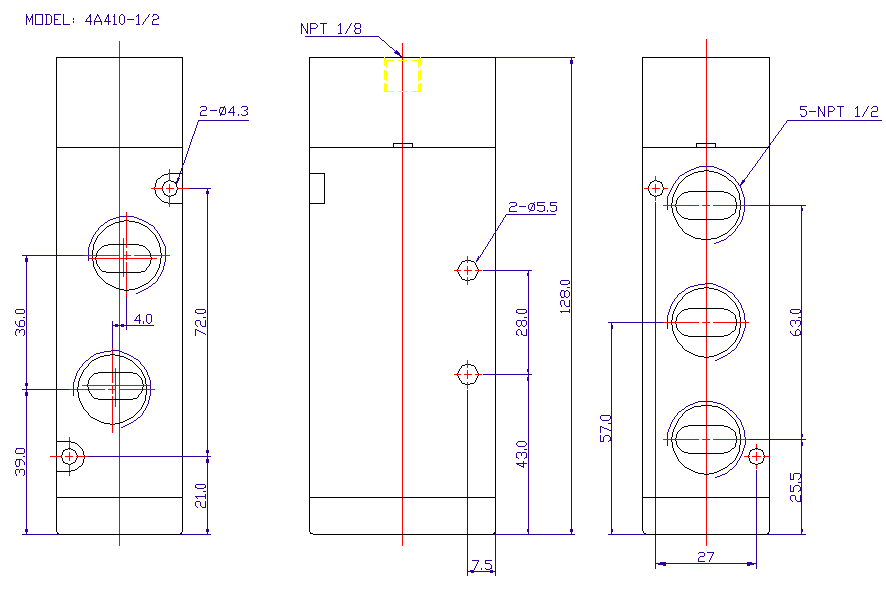

4A410-1/2

1/2 NPT

Cv = 2.79
160 SCFM @100 PSI
