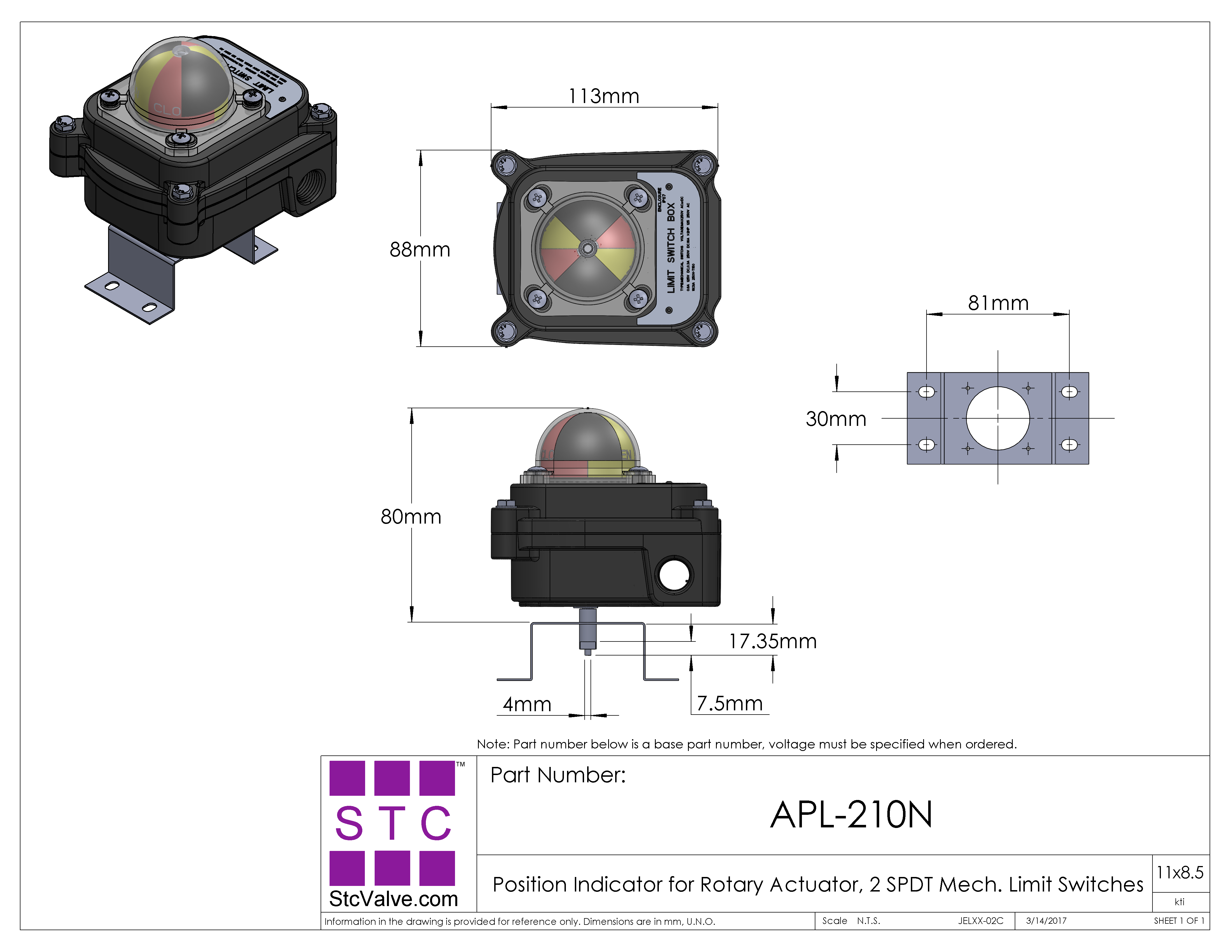

Visual Position Indicator for Rotary Actuators: APL-210N

The APL-210N is a visual open/closed indicator to be used with rotary actuators. It can be installed directly on top of STC pneumatic actuators.

APL-210N
Operation 2 SPDT Mechanical Limit Switches
Type Visual Open / Closed Indicator
Port Size / Cable Entry 2-1/2" NPT
Voltage Maximum 250VAC or VDC
Power Draw 8 to 14VDC: 5A
30VDC: 4A
125VDC: 0.4A
250VAC: 0.2A

125VAC: 5A
25VAC: 3A
Ingress Protection IP67
