Visual Position Indicator for Rotary Actuators: APL-410

The APL-410 is a visual open/closed indicator to be used with rotary actuators. It can be installed directly on top of STC pneumatic actuators.

APL-410N

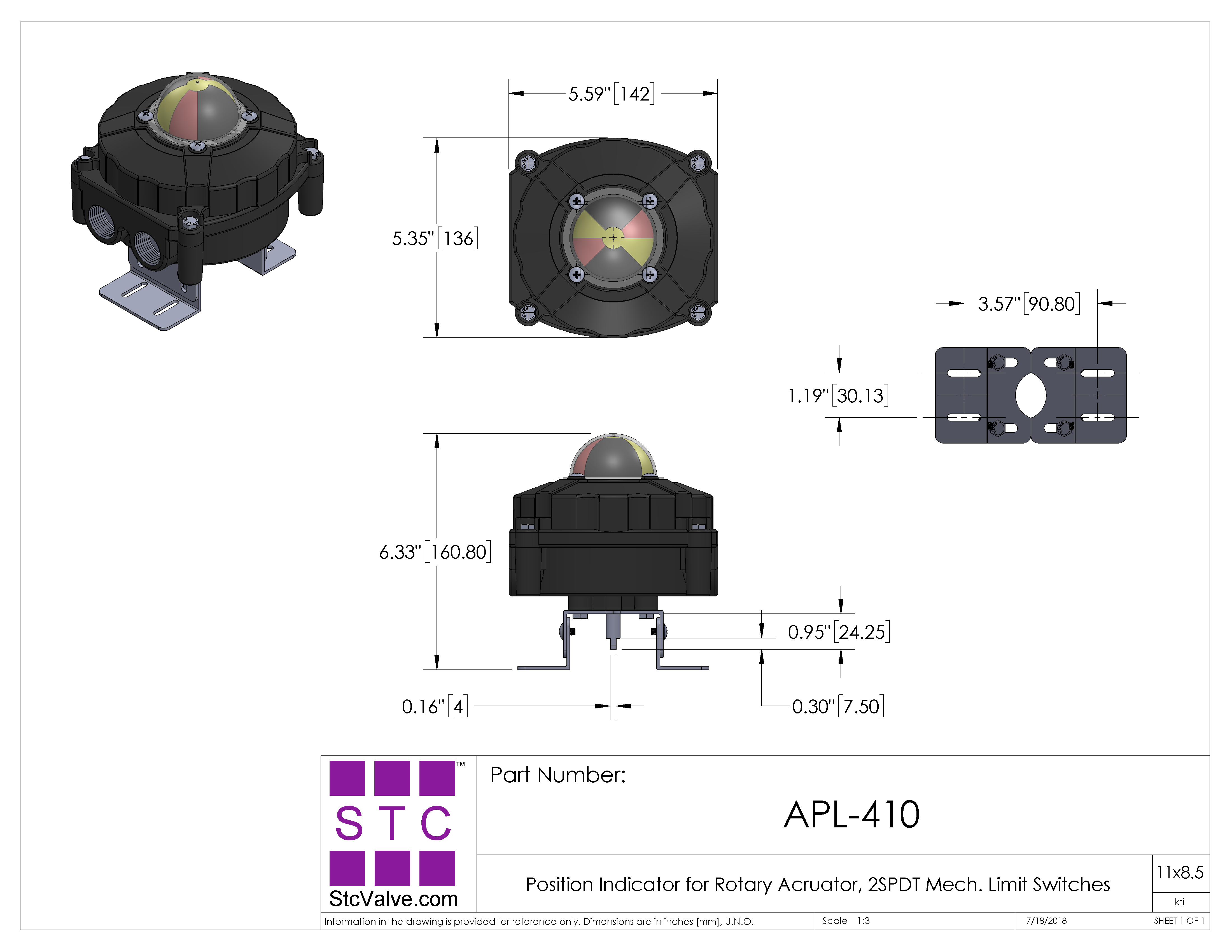

3D Drawings 3-D Solidworks 3-D STEP 3-D PDF 2D Drawings 2-D DWG 2-D PDF
Operation 2 SPDT Mechanical Limit Switches
Type Visual Open / Closed Indicator
Port Size / Cable Entry 2-3/4" NPT
Voltage Maximum 250VAC or VDC
Power Draw

125VDC: 0.6A
250VDC: 0.3A

125 to 250VAC: 15A
Ingress Protection IP67
Protection Class Exd II BT6
Explosion proof
