STC Solenoid Valve Manifold Dimensions (Units in mm)

Download PDF Drawings:   4V-100M   4V-200M   4V-300M   4V-400M

Part No. Valve Picture Port Size & No. of Stations Description
4V-100M-4 1/4" Port
4 Stations
Integrated Base for Mounting 4V-100 & 4A-100 Series Solenoid Valves
(Includes Mounting hardware and seal)
4V-100M-8 1/4" Port
8 Stations
4V-200M-4 1/4" Port
4 Stations
Integrated Base for Mounting 4V-200 & 4A-200 Series Solenoid Valves
(Includes Mounting hardware and seal)
4V-200M-8 1/4" Port
8 Stations
4V-300M-4 3/8" Port
4 Stations
Integrated Base for Mounting 4V-300 & 4A-300 Series Solenoid Valves
(Includes Mounting hardware and seal)
4V-300M-8 3/8" Port
8 Stations
4V-400M-4 1/2" Port
4 Stations
Integrated Base for Mounting 4V-400 & 4A-400 Series Solenoid Valves
(Includes Mounting hardware and seal)
4V-400M-8 1/2" Port
8 Stations

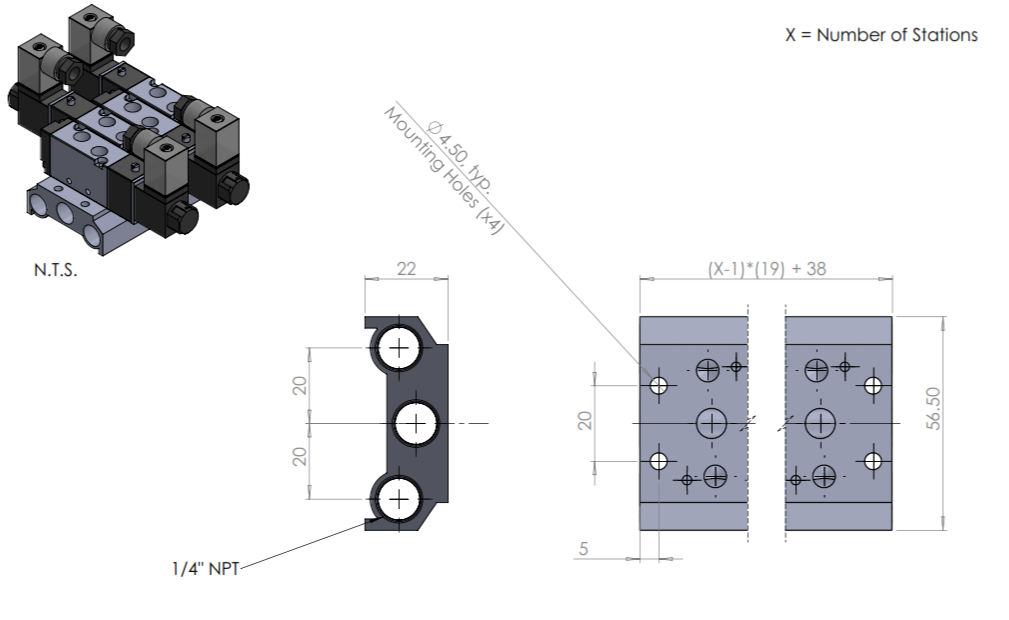

4V-100M (Units in mm)

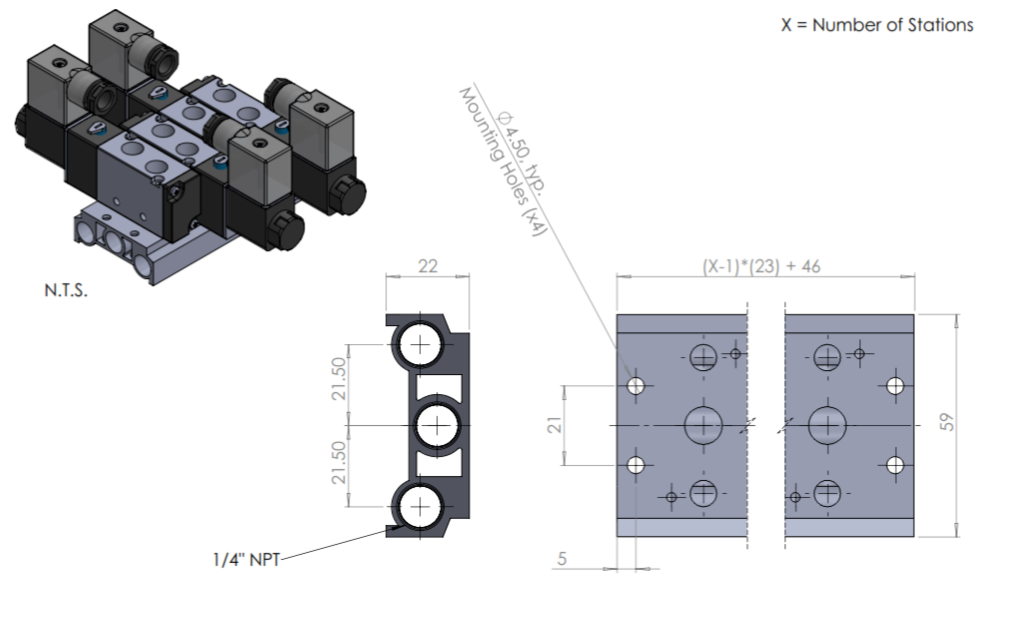

4V-200M(Units in mm)

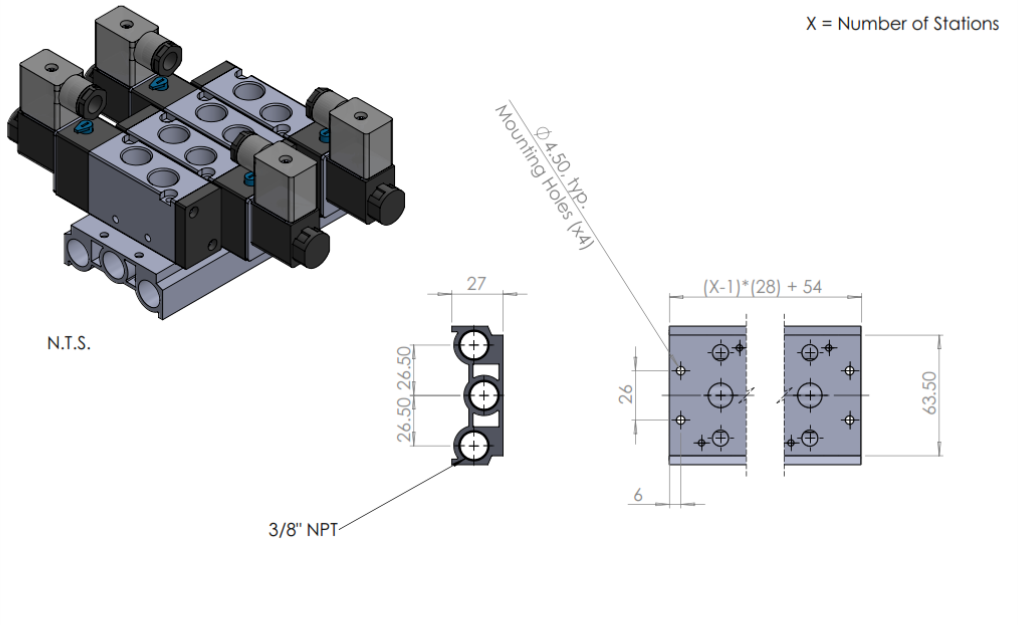

4V-300M (Units in mm)

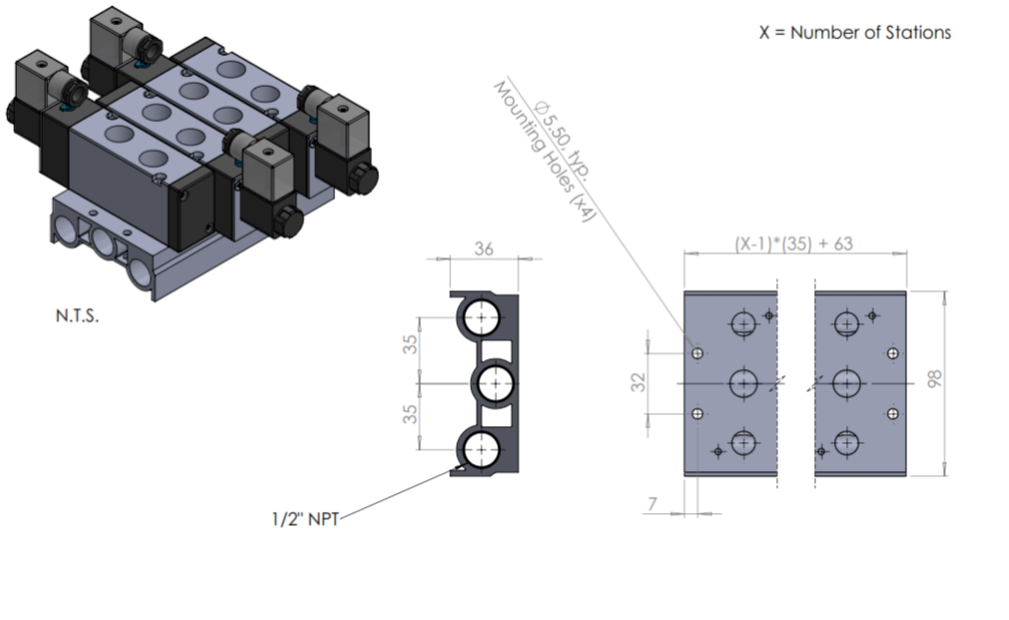

4V-400M (Units in mm)
