AB Series Aluminum Body Filter-Regulator-Lubricator (FRL) Specifications
| Specifications |
 |
|
| Part No. | AFC2000 | |
| Description | Stacked Filter-Regulator-Lubricator | |
| Port Size (NPT) | 1/4" | |
| Flow Rate (SCFM) | 16 | |
| Filtration (Microns) | 5-40 | |
| Regulating Range (PSI) | 7 to 125 | |
| Operating Temperature (°F) | 40-140 | |
| Max. Pressure(PSI) | 150 | |
| Recommended Oil | ISO VG 32 | |
| Caution |
Avoid contacting with Thinner, Carbon Tetrachloride, Cloroform, Ethylacetate, Nitric Acid, Sulfiric Acid, Anilene, Kerosene, and other Organic Solvents. Also avoid direct sun rays. |
|
| Materials of Construction | ||
| Metal Body | Aluminum Alloy (Epoxy Coated) | |
| Plastic Bowl | Polycarbonate | |
| Body Shield | Painted Steel | |
| Filter | Sintered Brass (40µ) or Plastic (5µ) | |

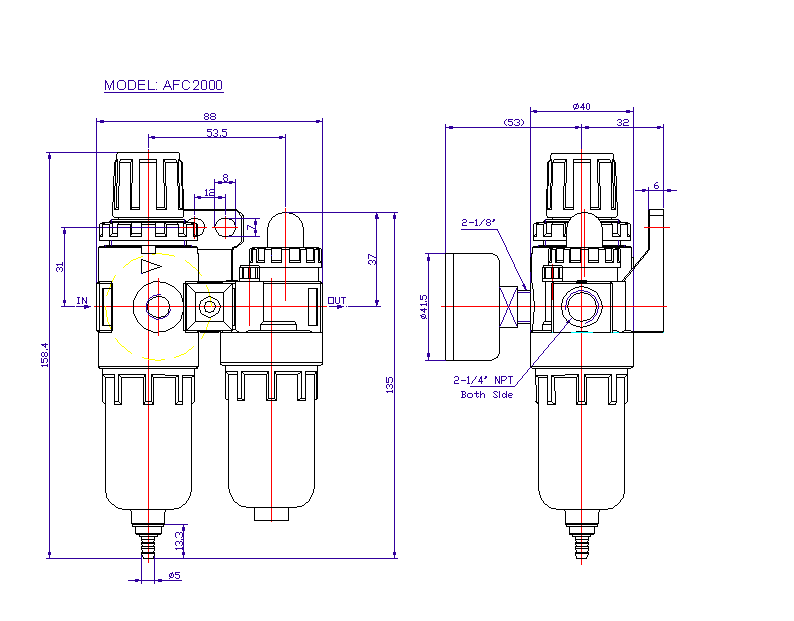

Dimensions: AFC2000 (Unit = mm)
