AB Series Aluminum Body Filter-Regulator-Lubricator (FRL) Specifications

Specifications
Part No. AR1500 AR2000 BR3000 BR4000
Port Size (NPT) 1/8" 1/4" 3/8" 1/2"
Flow Rate (SCFM) 16 16 60 60
Regulating Range (PSI) 7 to 125 7 to 125 7 to 125 7 to 125
Operating Temperature (°F) 40-140 40-140 40-140 40-140
Max. Pressure (PSI) 150 150 150 150
Materials of Construction
Metal Body Aluminum Alloy (Epoxy Coated)
Plastic Bowl Polycarbonate
Body Shield Painted Steel
Filter Sintered Brass (40µ) or Plastic (5µ)

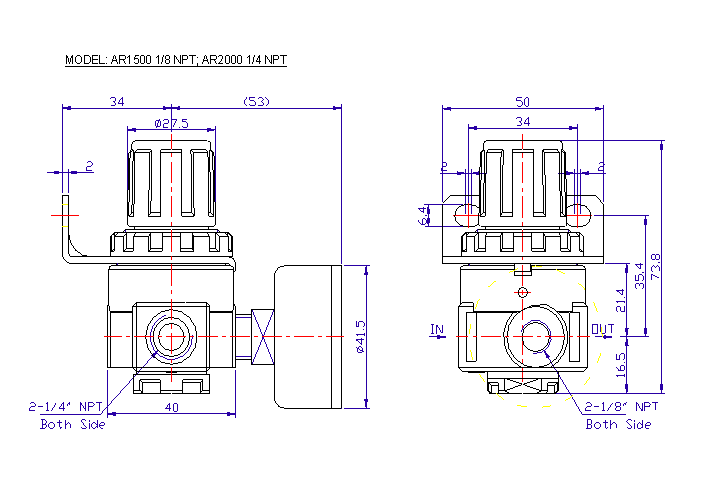

Dimensions: AR1500-2000 (Unit = mm)

Dimensions: BFR2000-4000 (Unit = mm)
