2-Way, Direct Lift Diaphragm, Normally Opened (NO), Engineered Nylon Solenoid Valve: 2PO160-1/2"

The 2PO160-1/2" is a two-way, normally closed, direct lift, zero differential solenoid valve.

2PO160
Valve Type	2 Way, Normally Opened (NO)

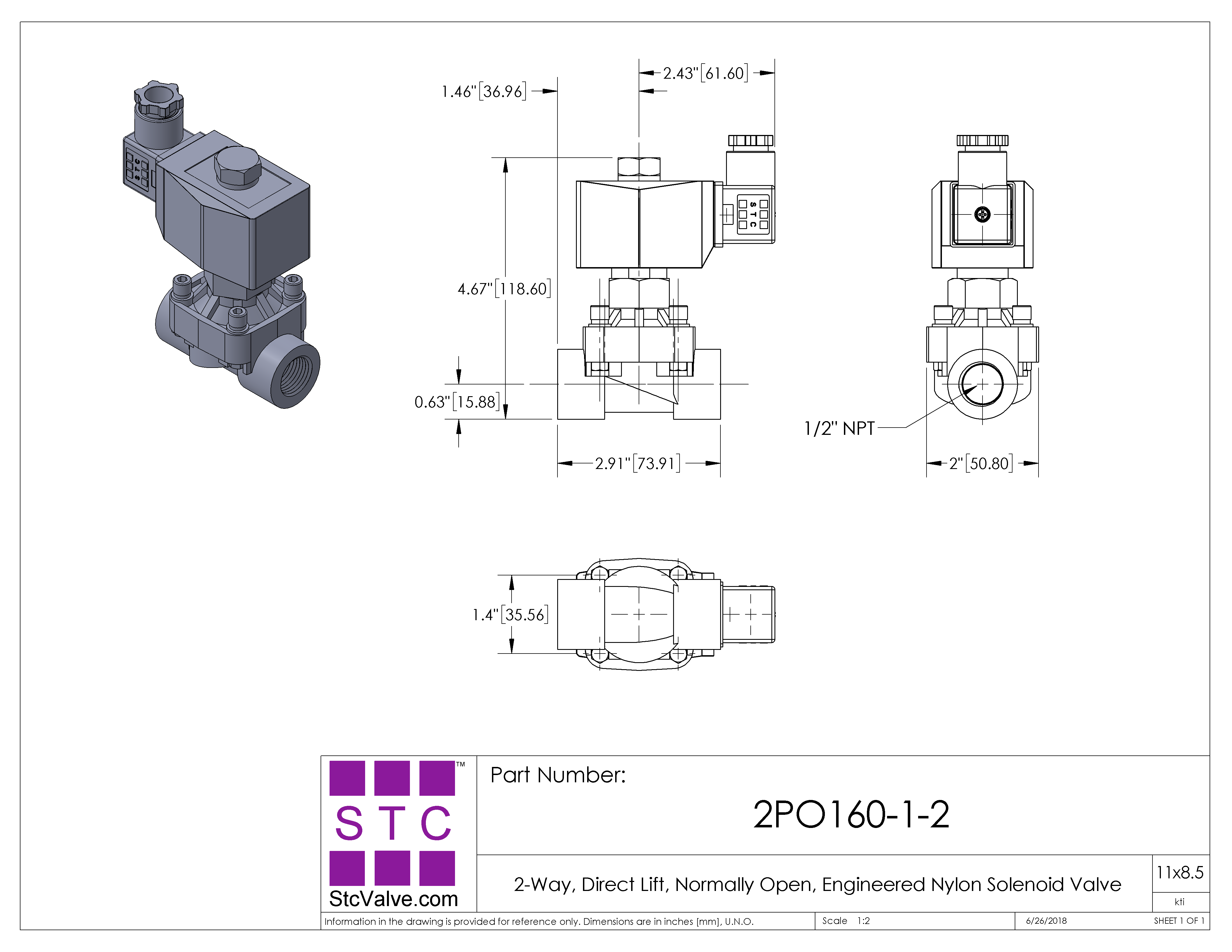

Action	Direct Lift Diaphragm, Uni-Directional, Zero Differential	Downloads 3D Drawings 3-D Solidworks 3-D STEP 3-D PDF 2D Drawings 2-D DWG 2-D PDF
Cv (Orifice, mm)	4.8 (16mm)
Operating Preassure	0 to 90 PSI
Proof Pressure	200 PSI
Operating Temperature	Media: -5 to 50°C; Ambient: -5 to 35°C
Port Size (NPT)	1/2"
Body Materials	ENGINEERED NYLON
Seal Materials	NBR (Buna N), Options: VITON, EPDM
Coil Duty	Class H, IP65, 100% ED (Continuous Duty)
Voltage	12VDC, 24VDC, 24VAC, 110/120 VAC (50/60Hz), 220/240 VAC (50/60Hz)
Coil Power	14 to 30W
Electrical Connections	DIN 43650, Form A
Service	Air, Inert Gas, Liquid, Vacuum

2PO160-250 Series 2/2 Direct Lift Diaphragm Normally Open Solenoid Valve:
To Close: When the valve is energized, the coil repels the plunger then the plunger covers the main orifice. The system pressure builds up on the top of the diaphragm/piston through the bleed orifice, forcing the diaphragm/piston down until it covers the main orifice and stops media flow through the valve. When the system pressure is 0PSI, the valve also can be operated.
To Open: When the valve is de-energized, the coil releases the plunger. The plunger uncovers the pilot orifice causing system pressure holding the diaphragm/piston closed to drop. As system pressure on the top of the diaphragm/piston is reduced, full system pressure on the opposite side of the diaphragm/piston acts to lift the diaphragm/piston away from the main orifice, which allows the full media flow through the valve. When the system pressure is 0PSI, the valve can be operated.

ALL standard valves are supplied with Continuous Duty Coils of the proper class of insulation for the service indicated on the valve. It is normal for the coil temperature may become hot after being energized for extended periods. Smoke or burning odor indicates excessive coil temperature and the power should be disconnected to the coil immediately.

CAUTION: Do not energize the solenoid coil when it is not installed onto the valve. It may cause it to overheat and create a fire hazard.

SERVICE LIFE: The service life of the solenoid valve depends on the operating conditions such as pressure, temperature, type of medium, and the voltage.

Electrical Coil Connections

• To Connect a DIN Coil:


  • Remove the Philips screw from the plastic housting & unplug from the DIN coil.
  • Use the removed screw to push the terminal block out of the plastic DIN housing.
  • Note the "1", "2", and ground "⏚" symbols.
    • For DC DIN Coils, connect "1" to your positive lead and "2" to your negative lead.
    • For AC DIN Coils, connect "1" to your HOT lead, "2" to your NEUTRAL lead, and "⏚" to your ground lead, if required.


• To Connect a Grommet Coil:


  • For DC Coils, connect the red wire to your positive lead and the black wire to your negative lead.
  • For AC Coils, connect the black wire to your HOT lead and the white wire to your NEUTRAL lead.
  • For Coils provided with Molded Cables, the color of the wire indicates the type of lead:
    • GREEN = Ground Wire
    • BLUE = Positive or HOT Wire
    • BROWN = Negative or Neutral Wire
