Model CC: Compact Male Connector Push In Fittings

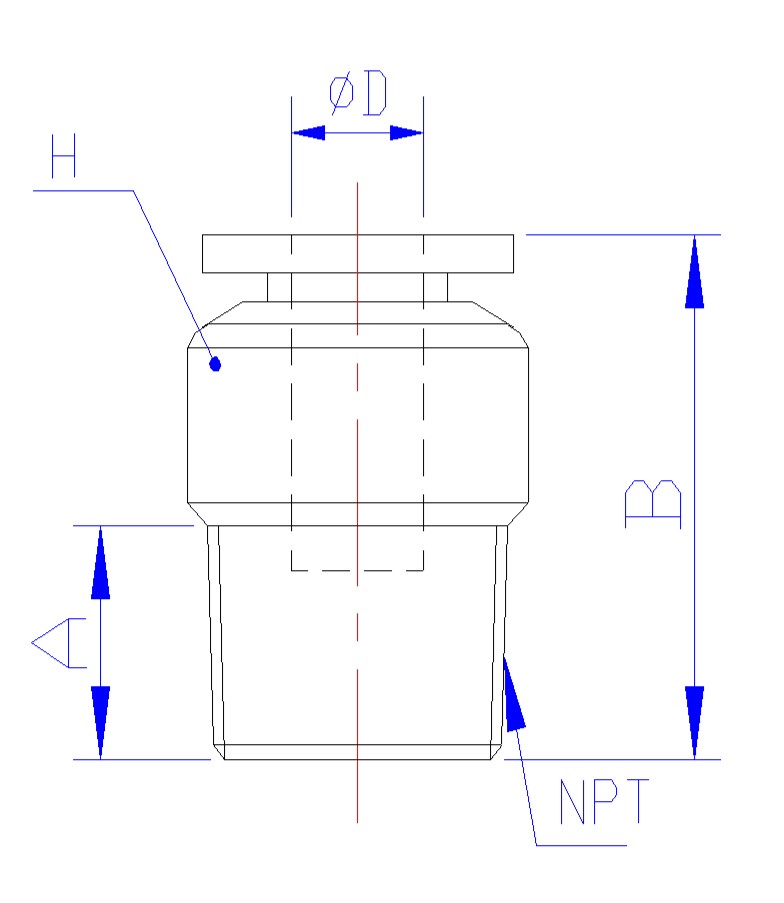

Model CC Dimensions
Compact Male Connector

Model ФD Thread Size A B H
CC 5/32 10-325/3210-32UNF3.820.3 Φ10
CC 5/32 N1/85/32NPT1/87.519.8 Φ10
CC 1/4 10-321/410-32UNF3.821.2 Φ12
CC 1/4 N1/81/4NPT1/87.520.9 Φ12
CC 1/4 N1/41/4NPT1/410.523.7 Φ14
CC 5/16 N1/85/16NPT1/87.525.9 Φ14
CC 5/16 N1/45/16NPT1/410.525.9 Φ14
CC 5/16 N3/85/16NPT3/81122.4 Φ17
CC 3/8 N1/43/8NPT1/410.530.5 Φ17
CC 3/8 N3/83/8NPT3/81127.5 Φ17
CC 3/8 N1/23/8NPT1/21425.8 Φ21
CC 1/2 N1/41/2NPT1/410.533.9 Φ21
CC 1/2 N3/81/2NPT3/81130.4 Φ21
CC 1/2 N1/21/2NPT1/21433.4 Φ21
CC 4 M54M53.820.1Φ10
CC 4 M64M64.520.8Φ10
CC 4 R1/84R1/8719.3Φ10
CC 4 R1/44R1/49.517.9Φ14
CC 6 M56M53.821Φ12
CC 6 M66M64.521.7Φ12
CC 6 R1/86R1/8720.4Φ12
CC 6 R1/46R1/49.522.7Φ14
CC 6 R3/86R3/810.520.7Φ17
CC 8 R1/88R1/8725.4Φ14
CC 8 R1/48R1/49.524.9Φ14
CC 8 R3/88R3/810.521.9Φ17
CC 8 R1/28R1/213.525.9Φ21
CC 10 R1/810R1/8727.7Φ17
CC 10 R1/410R1/49.529.5Φ17
CC 10 R3/810R3/810.527Φ17
CC 10 R1/210R1/213.525.3Φ21
CC 12 R1/412R1/49.532.9Φ20
CC 12 R3/812R3/810.529.9Φ20
CC 12 R1/212R1/213.532.9Φ21
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.
