Model ER: Elbow Reducer Push In Fittings

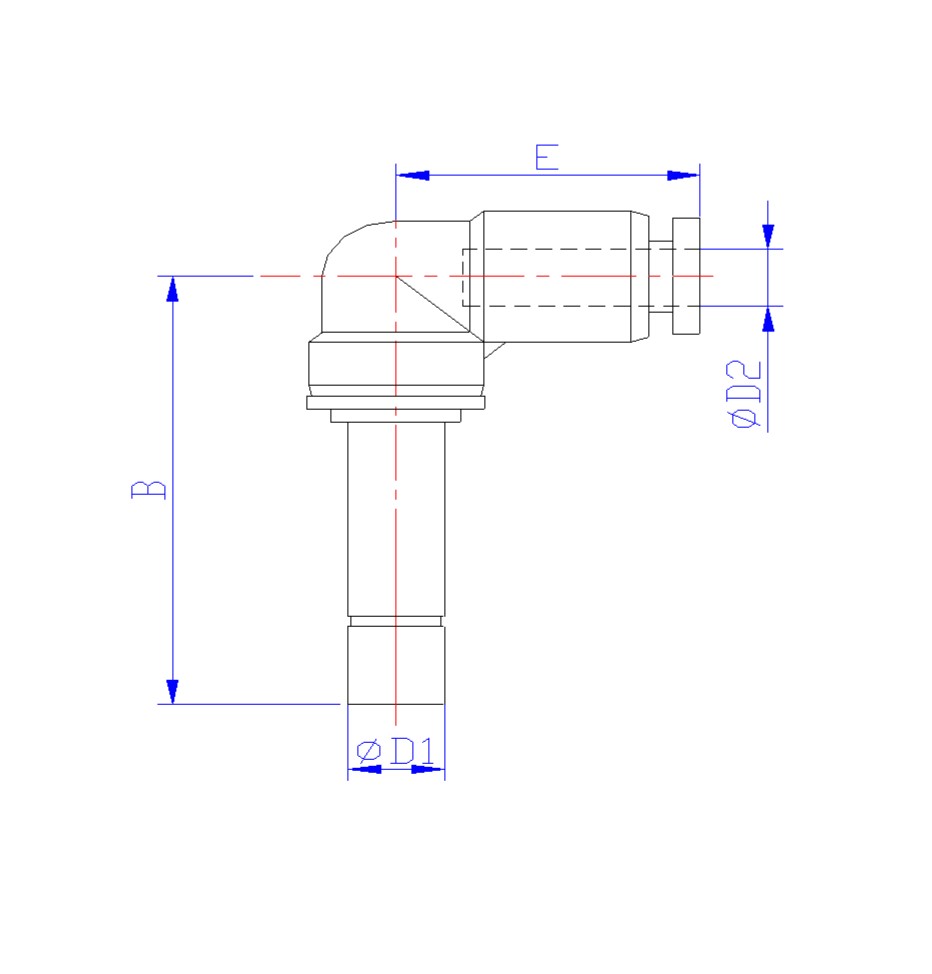

Model ER Dimensions
Elbow Reducer
Model ФD1 ФD2 B E
ER 3/16-5/323/165/323317.5
ER 1/4-5/321/45/323517.5
ER 1/4-3/161/43/163517.5
ER 5/16-1/45/161/439.219
ER 3/8-5/163/85/1642.522.8
ER 1/2-3/81/23/852.826.3
ER 6-4643517.5
ER 8-68639.219
ER 10-81084422.8
ER 12-10121048.526.3
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Link to Push-In Air Fitting Installation Procedure and Specifications
