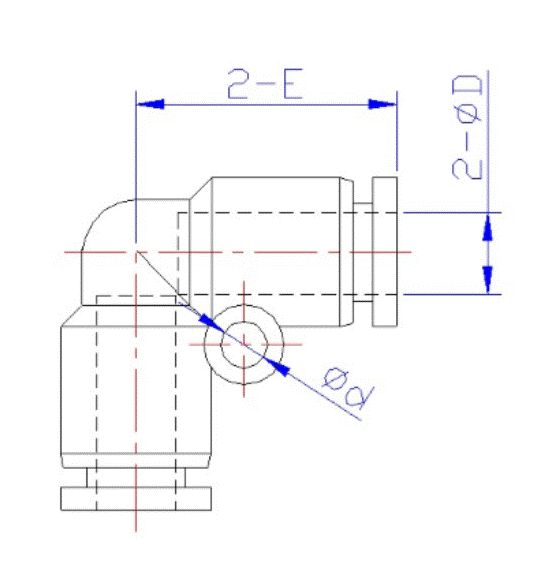

Model EU Dimensions Elbow Union
Model	ФD	Фd	E
EU 5/32	5/32	3.2	17.5
EU 3/16	3/16	3.2	17.8
EU 1/4	1/4	3.2	19
EU 5/16	5/16	3.2	22.8
EU 3/8	3/8	4.2	26.3
EU 1/2	1/2	4.3	29.6
EU 04	4	3.2	17.5
EU 06	6	3.2	19
EU 08	8	3.2	22.8
EU 10	10	4.2	26.3
EU 12	12	4.3	29.6
EU 14	14	5.1	31.7
EU 16	16	5.1	33
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Link to Push-In Air Fitting Installation Procedure and Specifications
