Model FE: Female Elbow Push In Fittings

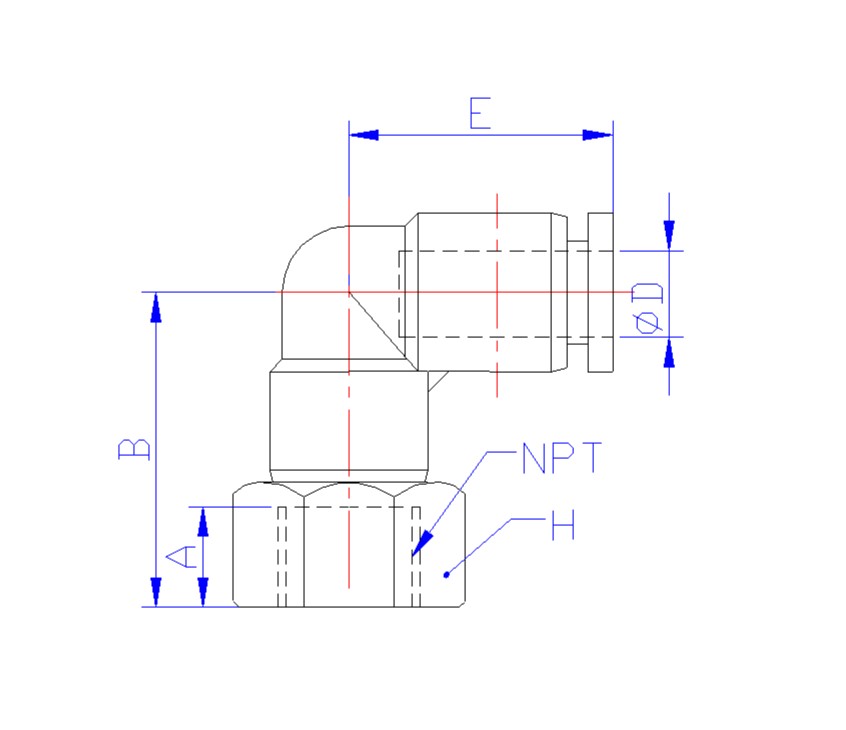

Model FE Dimensions
Female Elbow

Model ФD Thread Size A B E H
FE 5/32 N1/85/32NPT1/87.523.517.514.3
FE 3/16 N1/83/16NPT1/87.523.817.814.3
FE 3/16 N1/43/16NPT1/410.526.517.817.4
FE 1/4 N1/81/4NPT1/87.524.91914.3
FE 1/4 N1/41/4NPT1/410.527.91917.4
FE 5/16 N1/85/16NPT1/87.52522.814.3
FE 5/16 N1/45/16NPT1/410.528.522.817.4
FE 5/16 N3/85/16NPT3/81129.522.822.2
FE 3/8 N1/43/8NPT1/410.53126.317.4
FE 3/8 N3/83/8NPT3/81131.526.322.2
FE 1/2 N3/81/2NPT3/81134.529.622.2
FE 1/2 N1/21/2NPT1/21437.529.625.4
FE 4 M54M54.519.517.510
FE 4 M64M652017.510
FE 4 G1/84G1/872317.514
FE 4 G1/44G1/492517.517
FE 6 M56M54.520.71912
FE 6 M66M6521.21912
FE 6 G1/86G1/8724.41914
FE 6 G1/46G1/4926.41917
FE 6 G3/86G3/81027.71919
FE 8 G1/88G1/8724.822.814
FE 8 G1/48G1/492722.817
FE 8 G3/88G3/81028.522.819
FE 8 G1/28G1/21230.522.824
FE 10 G1/810G1/872326.317
FE 10 G1/410G1/4929.526.317
FE 10 G3/810G3/8103126.319
FE 10 G1/210G1/21233.526.324
FE 12 G1/412G1/492629.621
FE 12 G3/812G3/8103429.621
FE 12 G1/212G1/21236.529.624
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Link to Push-In Air Fitting Installation Procedure and Specifications
