Model MC: Male Connector Push In Fittings

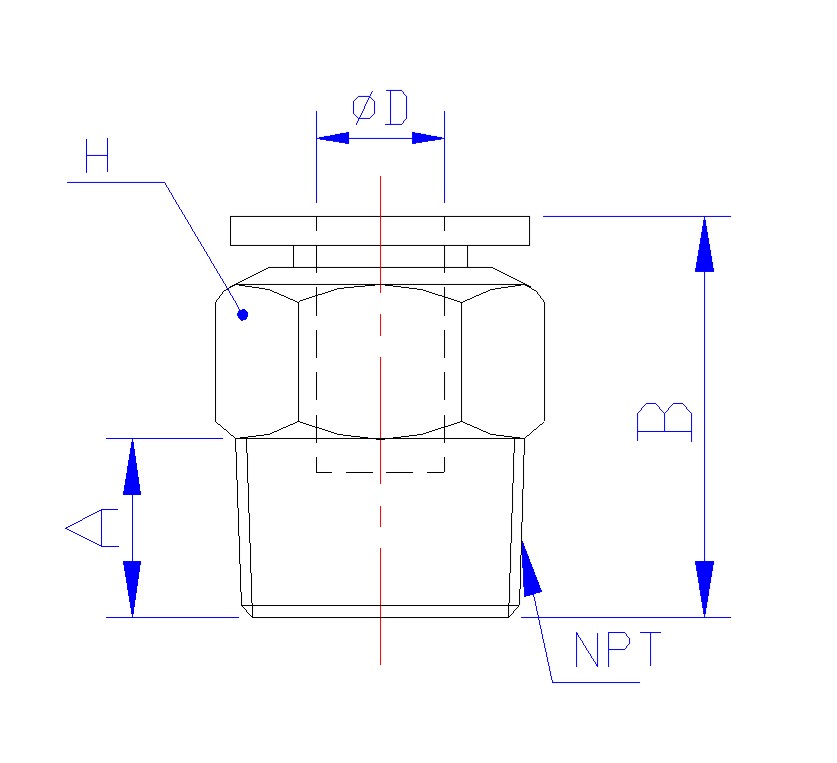

Model MC Dimensions
Male Connector

Model ФD Thread Size A B H
MC 5/32 10-325/3210-32UNF3.820.311.1
MC 5/32 N1/85/32NPT1/87.519.811.1
MC 5/32 N1/45/32NPT1/410.518.914.3
MC 3/16 10-323/1610-32UNF3.820.911.1
MC 3/16 N1/83/16NPT1/87.520.611.1
MC 3/16 N1/43/16NPT1/410.523.714.3
MC 3/16 N3/83/16NPT3/81121.217.4
MC 1/4 10-321/410-32UNF3.821.212.7
MC 1/4 N1/81/4NPT1/87.520.912.7
MC 1/4 N1/41/4NPT1/410.523.714.3
MC 1/4 N3/81/4NPT3/81121.217.4
MC 5/16 N1/85/16NPT1/87.525.914.3
MC 5/16 N1/45/16NPT1/410.525.914.3
MC 5/16 N3/85/16NPT3/81122.417.4
MC 3/8 N1/83/8NPT1/87.528.217.4
MC 3/8 N1/43/8NPT1/410.530.517.4
MC 3/8 N3/83/8NPT3/81127.517.4
MC 3/8 N1/23/8NPT1/21425.822.2
MC 1/2 N1/41/2NPT1/410.533.922.2
MC 1/2 N3/81/2NPT3/81130.422.2
MC 1/2 N1/21/2NPT1/21433.422.2
MC 4 M54M53.820.110
MC 4 M64M64.520.810
MC 4 R1/84R1/8719.310
MC 4 R1/44R1/49.517.914
MC 6 M56M53.821.212
MC 6 M66M64.521.712
MC 6 R1/86R1/8720.412
MC 6 R1/46R1/49.522.714
MC 6 R3/86R3/810.520.717
MC 6 R1/26R1/213.524.721
MC 8 R1/88R1/8725.414
MC 8 R1/48R1/49.524.914
MC 8 R3/88R3/810.521.917
MC 8 R1/28R1/213.525.921
MC 10 R1/810R1/8727.717
MC 10 R1/410R1/49.529.517
MC 10 R3/810R3/810.52717
MC 10 R1/210R1/213.525.321
MC 12 R1/412R1/49.532.920
MC 12 R3/812R3/810.529.9
MC 12 R1/212R1/213.532.921
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Link to Push-In Air Fitting Installation Procedure and Specifications
