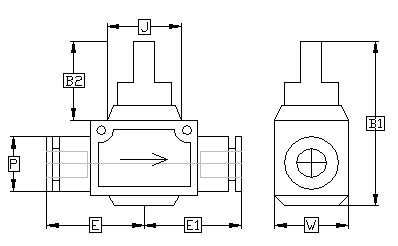

Model UV: Union Valve Dimensions

Plug Valve Push In Fitting

Vented Shut-Off Union Valve

Part No. D1 (mm) D2 (mm) C1 C2 E E1 ØP1 ØP2
UV 6-6660.670.670.9910.490.49
UV 8-6860.730.671.090.990.570.49
UV 8-8880.730.731.091.090.570.57
UV 10-1010100.830.831.241.240.690.69
UV 12-1012100.890.831.351.240.830.69
UV 12-1212120.890.891.351.350.830.83
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Link to Push-In Air Fitting Installation Procedure and Specifications
