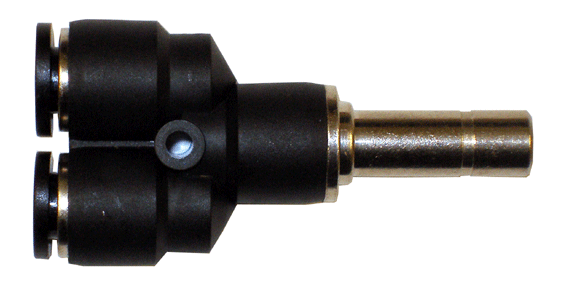

Model YR: Y Reducer (Tube Stem) Push In Fittings

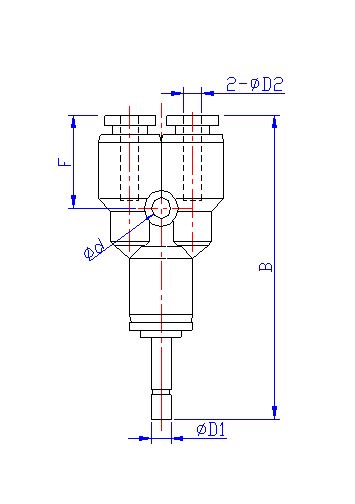

Model YR Dimensions
|
|||||
| Model | ФD1 | ФD2 | Фd | B | F |
| YR 5/32-1/4 | 1/4 | 5/32 | 3.2 | 53.0 | 14.0 |
| YR 1/4-5/16 | 5/16 | 1/4 | 3.2 | 57.3 | 14.8 |
| YR 5/16-3/8 | 3/8 | 5/16 | 4.2 | 64.1 | 18.2 |
| Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O. | |||||
Link to Push-In Air Fitting Installation Procedure and Specifications
