Direct Acting Stacking Aluminum Solenoid Valve, 2-Way or 3-Way: 2V1 & 3V1 Series
The 2V025-035 is a direct-acting, single solenoid aluminum valve with a two-way or 3-way operation & two positions.
 2-Way  3-Way |
||

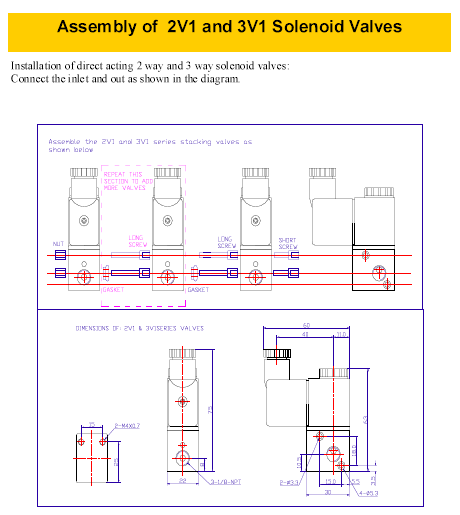

| Port & Mounting | Body Ported, 2-Way (2/2/1) or 3-Way (3/2/1), 2-Position, Spring Return, Horizontally Stacking (Hardware Included) | |
| Action & Motion | Direct Acting Poppet, Response Time < 20ms |
3D Drawings
3-D Solidworks (Grommet)
3-D Solidworks (DIN)
3-D STEP (Grommet)
3-D STEP (DIN)

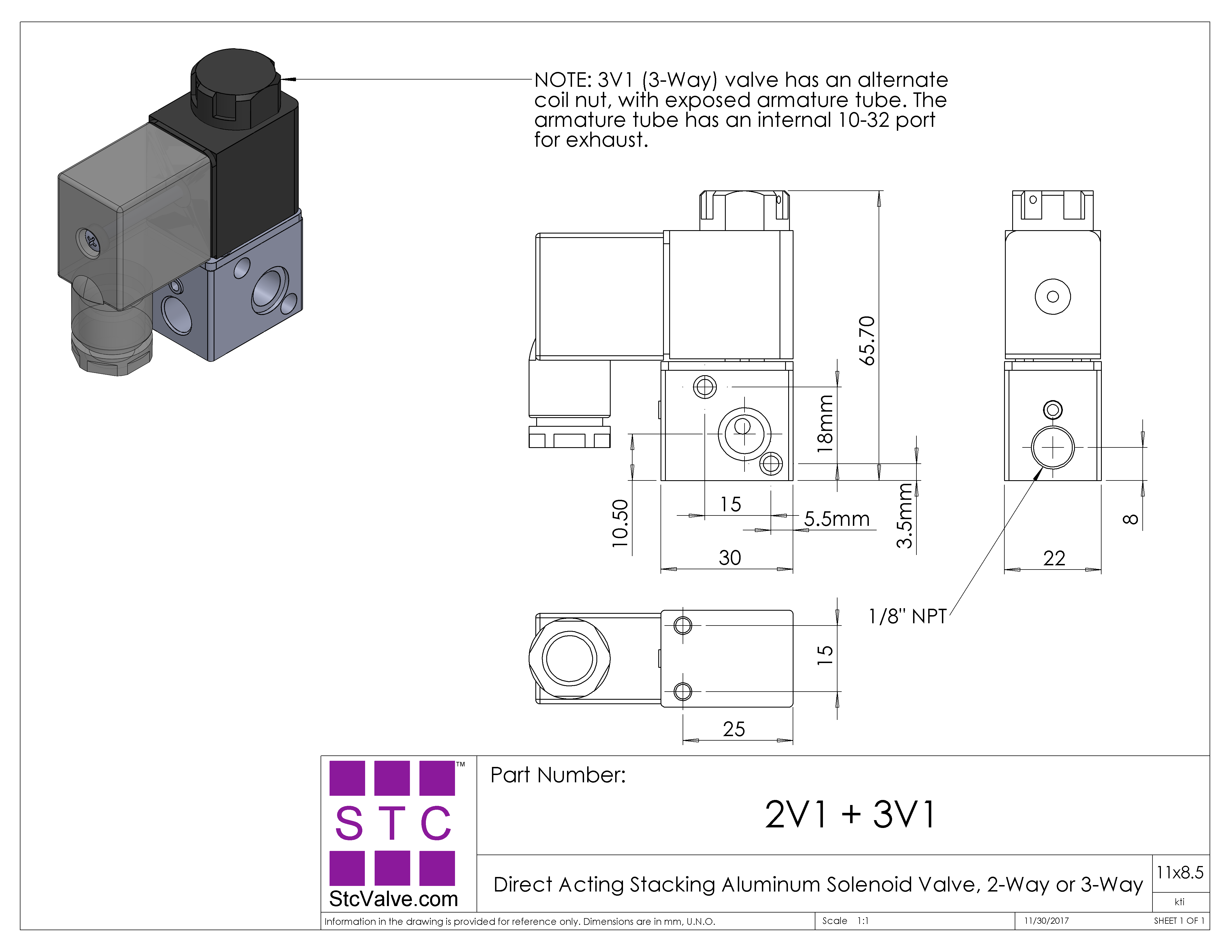

2D Drawings
2-D DWG
2-D PDF
|
| Operating Pressure | Vacuum (28" Hg) to 115PSI (Proof Pressure of 150 PSI) | |
| Port Size (NPT) | 1/8" | |
| Operating Temperature | 23 to 176°F (-5 to 80°C) with non-freezing medium | |
| Cv | 0.23 (2-Way), 0.05 (3-Way) | |
| SCFM @ 100 PSI | 22 (2-Way), 5 (3-Way) | |
| Manual Override | N/A | |
| Electrical Connection | DIN, Grommet | |
| Working Medium | Air, Inert Gas, Liquid | |
| Coil Duty Cycle & Protection | 100% ED (Continuous Duty), IP65, Class F | |
| Coil Voltage Options | 12VDC, 24VDC, 24VAC, 110/120 VAC (50/60Hz), 220/240 VAC (50/60Hz) | |
| Coil Locking Nut | M8 x 0.75 Threads | |
| Wetted Surface | Anodized Aluminum (Valve Body), NBR (Buna N) Seal, Brass & Stainless Steel Armature Tube Assembly | |
