Stainless Steel V1 Ball Valve

V1 Valve Specifications stainless ball valve
One Piece Reduced Port 316 Stainless Steel Ball Valve

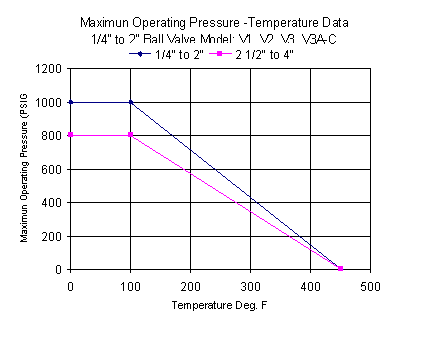

Maximum Operating Pressure: 1000PSIG @ 100°F WOG
Operating Temperature Range: -60 to 450°F
End Connections: NPT Threaded
Design Standard ASME: B16.34, GB/T12237
Test & Inspection: API1598, JB/T9092

Main Parts & Materials
No. Part Name Material Quantity
1SeatPTFE2
2BallSS316/CF8M1
3Joint GasketPTFE1
4CapSS3161
5BodySS3161
6StemSS3161
7Thrust WasherPTFE1
8Stem PackingPTFE1
9Gland NutSS3041
10Stem WasherSS3041
11Stem NutSS3041
12Handle CoverPlastic1
13HandleSS3041

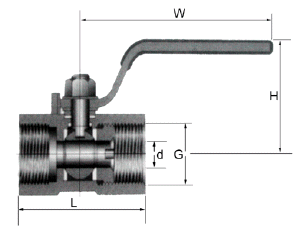

V1 Stainless Steel Ball Valve Dimensions
Dimension d L H W Wt (kg)
1/4"53935640.07
3/8"74437700.1
1/2"9.256.543.5900.16
3/4"12.55847900.25
1"1570501030.43
1 1/4"2078571030.7
1 1/2"24.583691270.83
2"3210074.51271.5
