Round Air Cylinders Dimensions

All cylinders are build to order at our China factory. Standard Lead Time: 8-10 Weeks; Option for Air Ship: 2-3 Weeks.
There are no returns on cylinders as they are custom made.

Stainless Steel & Aluminum Round Cylinders
Model			Picture	Links	Bore Size (mm)	Stroke (mm)	Magnet (Optional)	Options
MA Series Stainless Steel Round Cylinder	Double Acting	MA		Price Specifications	12 16 20 25 32 40	25-500	Standard = without magnet S = Magnet for Hall Sensor	Mounting Options: Standard= Standard Front Nose Mount and Back Pivot Mount LB = Front & Back Mount FA = Front Mounting Flange FB = Back Mounting Flange SDB = Back Clevis Bracket with Pin I = Rod Pivot with Pin
	Single Acting	MSA
MAL Series Aluminum Round Cylinder	Double Acting	MAL		Price Specifications	16 20 25 32 40	25-500	Standard = without magnet S = Magnet for Hall Sensor	Mounting Options: Standard= Standard Front Nose Mount and Back Pivot Mount LB = Front & Back Mount FA = Front Mounting Flange FB = Back Mounting Flange SDB = Back Clevis Bracket with Pin I = Rod Pivot with Pin
	Single Acting	MALS

Mounting Hardware & Reed Switch
Model	LB	FA	FB	SDB	I	AL-03R-MA MAL
Model	Front & Back Mount	Front Mounting Flange	Back Mounting Flange	Back Clevis Bracket with Pin	Rod Pivot with Pin	Reed Switch for MA or MAL cylinder

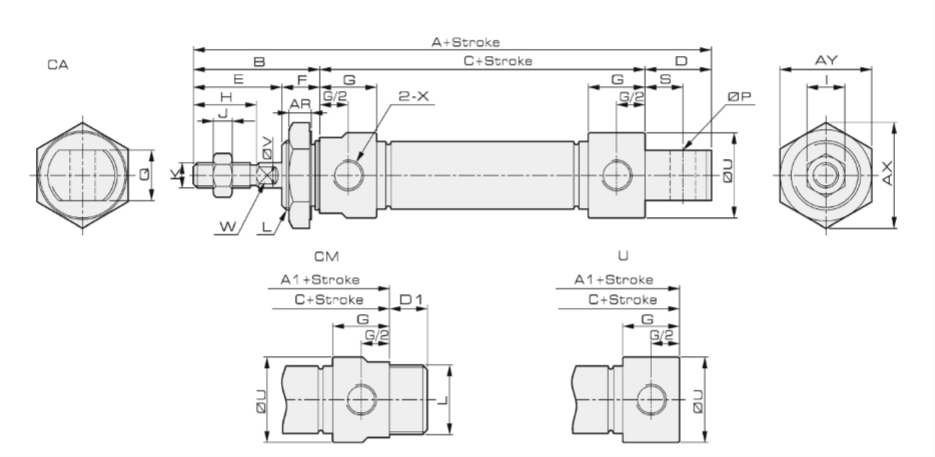

MA Cylinder Dimensions
Bore/Stroke	A	A1	B	C	D	D1	E	F	G	H	I	J	K
12	113	97	38	59	16	12	22	16	12	16	10	5	M6 x 1
16	114	98	38	60	16	12	22	16	12	16	10	5	M6 x 1
20	137	116	40	76	21	12	28	12	18	20	12	6	M8 x 1.25
25	141	120	44	76	21	14	30	14	16	22	17	6	M10 x 1.25
32	147	120	44	76	27	14	30	14	16	22	17	6	M10 x 1.25
40	150	123	46	77	27	14	32	14	16.7	24	19	7	M12 x 1.25
Bore/Stroke	L		P	Q	S	U	V	W	X		AR	AX	AY
12	M16 x 1.5		6	12	9.5	21	6	5	M5 x 0.8		6	27.8	24
16	M16 x 1.5		6	12	9	21	6	5	M5 x 0.8		6	27.8	24
20	M22 x 1.5		8	16	12	27	8	6	G1/8		7	33.5	29
25	M22 x 1.5		8	16	12	30	10	8	G1/8		7	33.5	29
32	M24 x 2		10	16	15	35	12	10	G1/8		9	37	32
40	M30 x 2		12	20	15	42	16	14	G1/4		9	46	40

MSA Cylinder Dimensions
Symbol	A			A1			B	C			D	D1	E	F	G
Bore/Stroke	0-50	50-100	100-150	0-50	50-100	100-150	B	0-50	50-100	100-150	D	D1	E	F	G
12	138	-	-	122	-	-	38	84	-	-	16	12	22	16	12
16	139	164	-	123	148	-	38	85	110	-	16	12	22	16	12
20	162	187	212	141	166	191	40	101	126	151	21	12	28	12	18
25	166	191	216	145	170	195	44	101	126	151	21	14	30	14	16
32	172	197	222	145	170	195	44	101	126	151	27	14	30	14	16
40	175	200	225	148	173	198	46	102	127	152	27	14	32	14	16.7
Bore/Symbol	H	I	J	K	L	P	Q	S	U	V	W	X	AR	AX	AY
12	16	10	5	M6 x 1	M16 x 1.5	6	12	9.5	21	6	5	M5 x 0.8	6	27.8	24
16	16	10	5	M6 x 1	M16 x 1.5	6	12	9	21	6	5	M5 x 0.8	6	27.8	24
20	20	12	6	M8 x 1.25	M22 x 1.5	8	16	12	27	8	6	G1/8	7	33.5	29
25	22	17	6	M10 x 1.25	M22 x 1.5	8	16	12	30	10	8	G1/8	7	33.5	29
32	22	17	6	M10 x 1.25	M24 x 2	10	16	15	35	12	10	G1/8	9	37	32
40	24	19	7	M12 x 1.25	M30 x 2	12	20	15	42	16	14	G1/4	9	46	40


MAL Cylinder Dimensions
Bore/Stroke	A	A1	B	C	D	D1	E	F	G	G1	H	I	J	K
16	105	90	38	52	15	12	24	14	11	6.5	16	10	5	M6 x 1
20	131	110	40	70	21	12	28	12	16	12	20	12	6	M8 x 1.25
25	135	114	44	70	21	14	30	14	16	11	22	17	6	M10 x 1.25
32	141	114	44	70	27	14	30	14	16	11.5	22	17	6	M10 x 1.25
40	165	138	46	92	27	14	32	14	22	15	24	19	7	M12 x 1.25
Bore/Stroke	L		P	Q	S	U	V	W	X		AR	AX	AY	Y
16	M16 x 1.5		6	12	6	21	6	5	M5 x 0.8		6	27.8	24	6
20	M22 x 1.5		8	16	12	27	8	6	G1/8		7	33.5	29	9
25	M22 x 1.5		8	16	12	32	10	8	G1/8		7	33.5	29	9
32	M24 x 2		10	16	15	39.5	12	10	G1/8		9	37	32	11.5
40	M30 x 2		12	20	15	47	16	14	G1/8		9	46	40	14

MALS Cylinder Dimensions
Symbol	A			A1			B	C			D	D1	E	F	G
Bore/Stroke	0-50	50-100	100-150	0-50	50-100	100-150	B	0-50	50-100	100-150	D	D1	E	F	G
16	130	155	-	115	140	-	38	77	102	-	15	12	24	14	11
20	156	181	206	135	160	185	40	95	120	145	21	12	28	12	16
25	160	185	210	139	164	189	44	95	120	145	21	14	30	14	16
32	166	191	216	139	164	189	44	95	120	145	27	14	30	14	16
40	190	215	240	163	188	213	46	117	142	167	27	14	32	14	22
Bore/Symbol	H	I	J	K	L	P	Q	S	U	V	W	X	AR	AX	AY
16	16	10	5	M6 x 1	M16 x 1.5	6	12	6	21	6	5	M5 x 0.8	6	27.8	24
20	20	12	6	M8 x 1.25	M22 x 1.5	8	16	12	27	8	6	G1/8	7	33.5	29
25	22	17	6	M10 x 1.25	M22 x 1.5	8	16	12	32	10	8	G1/8	7	33.5	29
32	22	17	6	M10 x 1.25	M24 x 2	10	16	15	39.5	12	10	G1/8	9	37	32
40	24	19	7	M12 x 1.25	M30 x 2	12	20	15	47	16	14	G1/8	9	46	40

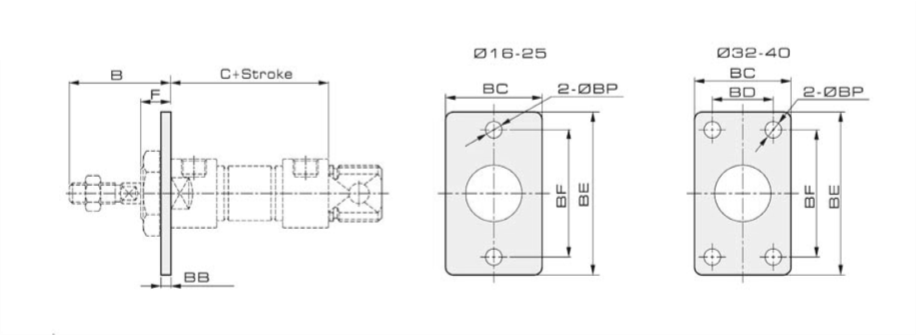

FA Mounting Flange Dimensions
Symbol	B	C (MA Series)	C (MSA Series)			C (MAL Series)	C (MALS Series)			BB	BC	BD	BE	BF	BP	F (MA/MSA)	F (MAL/MALS)
Bore/Stroke	B	C (MA Series)	0-50	50-100	100-150	C (MAL Series)	0-50	50-100	100-150	BB	BC	BD	BE	BF	BP	F (MA/MSA)	F (MAL/MALS)
16	38	60	85	110	-	52	77	102	-	3	26	-	52	40	5.5	16	14
20	40	76	101	126	151	70	95	120	145	4	38	-	64	50	6.5	12	12
25	44	76	101	126	151	70	95	120	145	4	38	-	64	50	6.5	14	14
32	44	76	101	126	151	70	95	120	145	4	47	33	72	58	6.5	14	14
40	46	77	102	127	152	92	117	142	167	4	50	36	84	70	6.5	14	14


LB Mounting Flange Dimensions

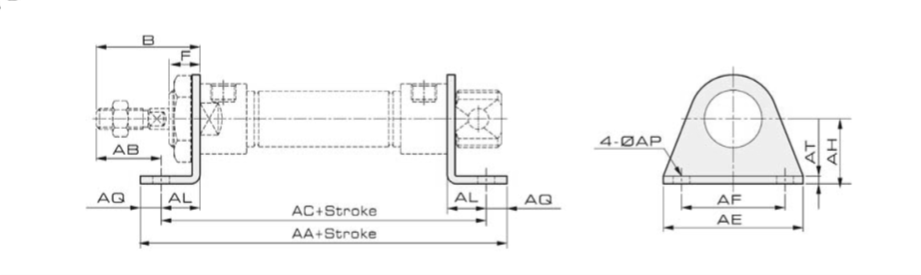

Symbol	B	AA (MA Series)	AA (MSA Series)			AB	AC (MAL Series)	AC (MALS Series)			AE	AF	AH	AL	AP	AQ	AT	F
Bore/Stroke	B	AA (MA Series)	0-50	50-100	100-150	AB	AC (MAL Series)	0-50	50-100	100-150	AE	AF	AH	AL	AP	AQ	AT	F
16	38	98	123	148	-	25	86	111	136	-	44	32	20	13	5.5	6	3	16
20	40	122	147	172	197	25	106	131	156	181	54	40	25	15	6.5	8	3	12
25	44	122	147	172	197	29	106	131	156	181	54	40	25	15	6.5	8	3	14
32	44	142	167	192	217	19	126	151	176	201	59	45	32	25	6.5	8	4	14
40	46	143	168	193	218	21	127	152	177	202	64	50	36	25	6.5	8	4	14

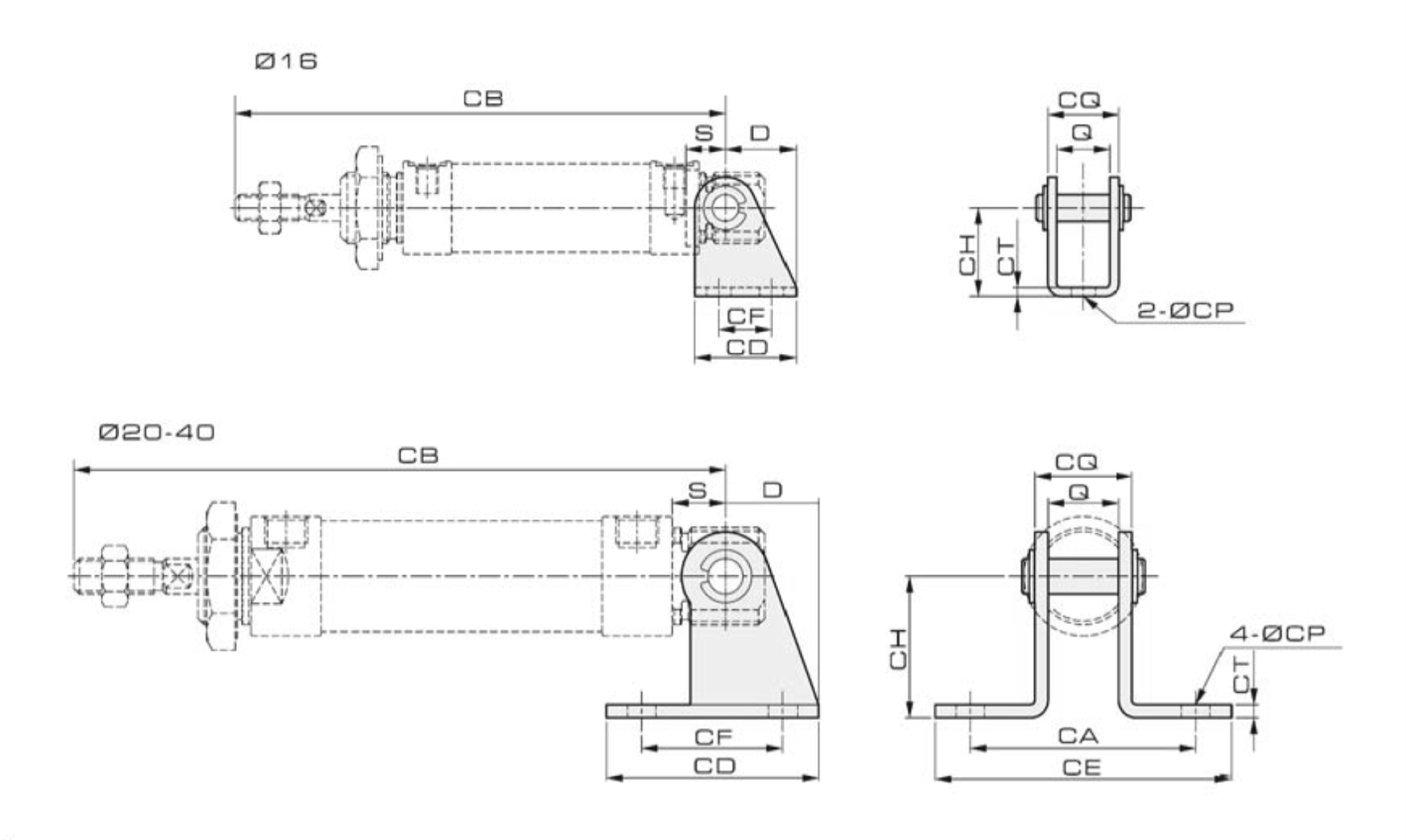

SDB Mounting Flange Dimensions
Symbol	D	S	Q	CA	CB (MA Series)	CB (MSA Series)			CB (MAL Series)	CB (MALS Series)			CD	CE	CF	CH	CT (MA/MSA)	CT (MAL/MALS)	CP	CQ
Bore/Stroke	D	S	Q	CA	CB (MA Series)	0-50	50-100	100-150	CB (MAL Series)	0-50	50-100	100-150	CD	CE	CF	CH	CT (MA/MSA)	CT (MAL/MALS)	CP	CQ
16	16	9	12	-	107	132	157	-	96	121	146	-	23	-	12	20	5.5	2	5.5	16
20	21	12	16	51	128	153	178	203	122	147	172	197	48	67	32	32	6.5	3	6.5	22
25	21	12	16	51	132	157	182	207	126	151	176	201	48	67	32	32	6.5	3	6.5	22
32	27	15	16	51	135	160	185	210	129	154	179	204	52	67	36	36	6.5	4	6.5	24
40	27	15	20	55	138	163	188	213	153	178	203	228	56	71	40	40	6.5	4	6.5	28

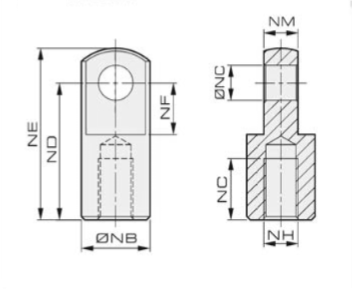

I Knuckle Dimensions
Bore/Symbol	NB	NC	ND	NE	NF	NG	NH	NM
16	12	5	21	28	8.5	8	M6 X 1	6
20	16	8	30	40	11	15	M8 x 1.25	8
25	20	10	40	50	15	18	M10 x 1.25	10
32	20	10	40	50	15	18	M10 x 1.25	10
40	24	12	48	62	24	18	M12 x 1.25	12
